Input File Usage: Use the following options to specify that material hardening and residual stresses have occurred prior to the current analysis: \*INITIAL CONDITIONS, TYPE=HARDENING \*INITIAL CONDITIONS, TYPE=STRESS Abaqus/CAE Usage: Use the following options to specify that material hardening and residual stresses have occurred prior to the current analysis: Load module: Create Predefined Field: Step: Initial, choose Mechanical for the Category and Hardening and Stress for the Types for Selected Step # Damage initiation criteria for sheet metal instability Necking instability plays a determining factor in sheet metal forming processes: the size of the local neck region is typically of the order of the thickness of the sheet, and local necks can rapidly lead to fracture. Localized necking cannot be modeled with traditional shell elements used in sheet metal forming simulations because the size of the neck is of the order of the thickness of the element. Abaqus supports four criteria for predicting the onset of necking instability in sheet metals: forming limit diagram (FLD); forming limit stress diagram (FLSD); Müschenborn-Sonne forming limit diagram (MSFLD); and Marciniak-Kuczynski (M-K) criteria, which is available only in Abaqus/Explicit. These criteria apply only to elements with a plane stress formulation (plane stress, shell, continuum shell, and membrane elements); Abaqus ignores these criteria for other elements. The initiation criteria for necking instability can be used in combination with the damage evolution models discussed in “Damage evolution and element removal for ductile metals,” Section 24.2.3, to account for the damage induced by necking. Classical strain-based forming limit diagrams (FLDs) are known to be dependent on the strain path. Changes in the deformation mode (e.g., equibiaxial loading followed by uniaxial tensile strain) may result in major modifications in the level of the limit strains. Therefore, the FLD damage initiation criterion should be used with care if the strain paths in the analysis are nonlinear. In practical industrial applications, significant changes in the strain path may be induced by multistep forming operations, complex geometry of the tooling, and interface friction, among other factors. For problems with highly nonlinear strain paths Abaqus offers three additional damage initiation criteria: the forming limit stress diagram (FLSD) criterion, the Müschenborn-Sonne forming limit diagram (MSFLD) criterion, and in Abaqus/Explicit the Marciniak-Kuczynski (M-K) criterion; these alternatives to the FLD damage initiation criterion are intended to minimize load path dependence. The characteristics of each criterion available in Abaqus for predicting damage initiation in sheet metals are discussed below. # Forming limit diagram (FLD) criterion The forming limit diagram (FLD) is a useful concept introduced by Keeler and Backofen (1964) to determine the amount of deformation that a material can withstand prior to the onset of necking instability. The maximum strains that a sheet material can sustain prior to the onset of necking are referred to as the forming limit strains. A FLD is a plot of the forming limit strains in the space of principal (in-plane) logarithmic strains. In the discussion that follows major and minor limit strains refer to the maximum and minimum values of the in-plane principal limit strains, respectively. The major limit strain is usually represented on the vertical axis and the minor strain on the horizontal axis, as illustrated in Figure 24.2.2–1. The line connecting the states at which deformation becomes unstable is referred to as the forming limit curve (FLC). The FLC gives a sense of the formability of a sheet of material. Strains computed numerically by Abaqus can be compared to a FLC to determine the feasibility of the forming process under analysis.

line

| ε_major | ε_FLC | | ------- | ----- | | 0 | 0 | | B | 0 | | A | 0 |

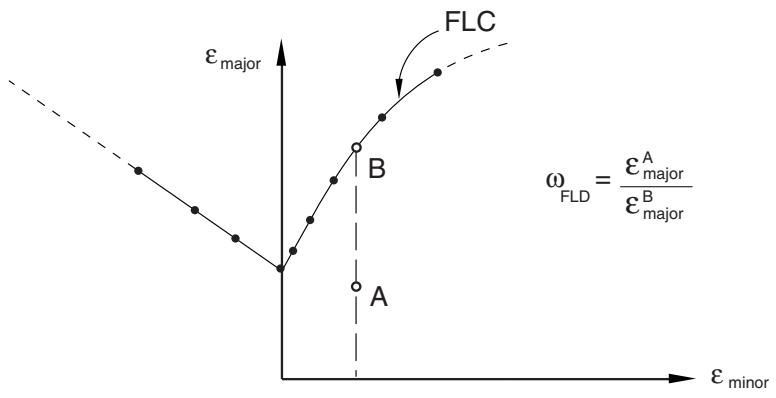

Figure 24.2.2–1 Forming limit diagram (FLD). The FLD damage initiation criterion requires the specification of the FLC in tabular form by giving the major principal strain at damage initiation as a tabular function of the minor principal strain and, optionally, temperature and predefined field variables, $\varepsilon _ { \mathrm { m a j o r } } ^ { \mathrm { F L D } } ( \varepsilon _ { \mathrm { m i n o r } } , \theta , f _ { i } )$ . The damage initiation criterion for the FLD is given by the condition $\omega _ { \mathrm { { F L D } } } = 1$ , where the variable $\omega _ { \mathrm { { F L D } } }$ is a function of the current deformation state and is defined as the ratio of the current major principal strain, $\varepsilon _ { \mathrm { m a j o r } }$ , to the major limit strain on the FLC evaluated at the current values of the minor principal strain, ; temperature, $\theta ;$ and predefined field variables, $f _ { i } { \mathrm { : } }$ $$ \omega_ {\mathrm{FLD}} = \frac {\varepsilon_ {\mathrm{major}}}{\varepsilon_ {\mathrm{major}} ^ {\mathrm{FLD}} (\varepsilon_ {\mathrm{minor}} , \theta , f _ {i})}. $$ For example, fis evaluated as $\omega _ { \mathrm { F L D } } = \varepsilon _ { \mathrm { m a j o r } } ^ { \mathrm { A } } / \varepsilon _ { \mathrm { m a j o r } } ^ { \mathrm { B } }$ iven by point A in Figure 24.2.2–1 the damage initiation criterion If the value of the minor strain lies outside the range of the specified tabular values, Abaqus will extrapolate the value of the major limit strain on the FLC by assuming that the slope at the endpoint of the curve remains constant. Extrapolation with respect to temperature and field variables follows the standard conventions: the property is assumed to be constant outside the specified range of temperature and field variables (see “Material data definition,” Section 21.1.2). Experimentally, FLDs are measured under conditions of biaxial stretching of a sheet, without bending effects. Under bending loading, however, most materials can achieve limit strains that are much greater than those on the FLC. To avoid the prediction of early failure under bending deformation, Abaqus evaluates the FLD criterion using the strains at the midplane through the thickness of the element. For composite shells with several layers the criterion is evaluated at the midplane of each layer for which a FLD curve has been specified, which ensures that only biaxial stretching effects are taken into account. Therefore, the FLD criterion is not suitable for modeling failure under bending loading; other failure models (such as ductile and shear failure) are more appropriate for such loading. Once the FLD damage initiation criterion is met, the evolution of damage is driven independently at each material point through the thickness of the element based on the local deformation at that point. Thus, although bending effects do not affect the evaluation of the FLD criterion, they may affect the rate of evolution of damage. Input File Usage: Use the following option to specify the limit major strain as a tabular function of minor strain: $\mathrm { * D A M A G E ~ I N I T I A T I O N } , \mathrm { C R I T E R I O N { = } F L D }$ Abaqus/CAE Usage: Property module: material editor: Mechanical→Damage for Ductile Metals→FLD Damage # Forming limit stress diagram (FLSD) criterion When strain-based FLCs are converted into stress-based FLCs, the resulting stress-based curves have been shown to be minimally affected by changes to the strain path (Stoughton, 2000); that is, different strain-based FLCs, corresponding to different strain paths, are mapped onto a single stress-based FLC. This property makes forming limit stress diagrams (FLSDs) an attractive alternative to FLDs for the prediction of necking instability under arbitrary loading. However, the apparent independence of the stress-based limit curves on the strain path may simply reflect the small sensitivity of the yield stress to changes in plastic deformation. This topic is still under discussion in the research community. A FLSD is the stress counterpart of the FLD, with the major and minor principal in-plane stresses corresponding to the onset of necking localization plotted on the vertical and horizontal axes, respectively. In Abaqus the FLSD damage initiation criterion requires the specification of the major principal in-plane stress at damage initiation as a tabular function of the minor principal in-plane stress and, optionally, temperature and predefined field variables, $\sigma _ { \mathrm { m a j o r } } ^ { \mathrm { F L S D } } ( \sigma _ { \mathrm { m i n o r } } , \theta , f _ { i } )$ . The damage initiation criterion for the FLSD is met when the condition $\omega _ { \mathrm { F L S D } } = 1$ is satisfied, where the variable $\omega _ { \mathrm { F L S D } }$ is a function of the current stress state and is defined as the ratio of the current major principal stress, $\sigma _ { \mathrm { m a j o r } } ,$ to the major stress on the FLSD evaluated at the current values of minor stress, $\sigma _ { \mathrm { m i n o r } }$ ; temperature, ; and predefined field variables, $f _ { i }$ : $$ \omega_ {\mathrm{FLSD}} = \frac {\sigma_ {\mathrm{major}}}{\sigma_ {\mathrm{major}} ^ {\mathrm{FLSD}} (\sigma_ {\mathrm{minor}} , \theta , f _ {i})}. $$ If the value of the minor stress lies outside the range of specified tabular values, Abaqus will extrapolate the value of the major limit stress assuming that the slope at the endpoints of the curve remains constant. Extrapolation with respect to temperature and field variables follows the standard conventions: the property is assumed to be constant outside the specified range of temperature and field variables (see “Material data definition,” Section 21.1.2). For reasons similar to those discussed earlier for the FLD criterion, Abaqus evaluates the FLSD criterion using the stresses averaged through the thickness of the element (or the layer, in the case of composite shells with several layers), ignoring bending effects. Therefore, the FLSD criterion cannot be used to model failure under bending loading; other failure models (such as ductile and shear failure) are more suitable for such loading. Once the FLSD damage initiation criterion is met, the evolution of damage is driven independently at each material point through the thickness of the element based on the local deformation at that point. Thus, although bending effects do not affect the evaluation of the FLSD criterion, they may affect the rate of evolution of damage. Input File Usage: Use the following option to specify the limit major stress as a tabular function of minor stress: \*DAMAGE INITIATION, CRITERION=FLSD Abaqus/CAE Usage: Property module: material editor: Mechanical→Damage for Ductile Metals→FLSD Damage # Marciniak-Kuczynski (M-K) criterion Another approach available in Abaqus/Explicit for accurately predicting the forming limits for arbitrary loading paths is based on the localization analysis proposed by Marciniak and Kuczynski (1967). The approach can be used with the Mises and Johnson-Cook plasticity models, including kinematic hardening. In M-K analysis, virtual thickness imperfections are introduced as grooves simulating preexisting defects in an otherwise uniform sheet material. The deformation field is computed inside each groove as a result of the applied loading outside the groove. Necking is considered to occur when the ratio of the deformation in the groove relative to the nominal deformation (outside the groove) is greater than a critical value. Figure 24.2.2–2 shows schematically the geometry of the groove considered for M-K analysis. In the figure a denotes the nominal region in the shell element outside the imperfection, and b denotes the weak groove region. The initial thickness of the imperfection relative to the nominal thickness is given by the ratio $f _ { 0 } = t _ { 0 } ^ { b } / t _ { 0 } ^ { a }$ , with the subscript 0 denoting quantities in the initial, strain-free state. The groove is oriented at a zero angle with respect to the 1-direction of the local material orientation. Abaqus/Explicit allows the specification of an anisotropic distribution of thickness imperfections as a function of angle with respect to the local material orientation, $f _ { 0 } ( \theta )$ . Abaqus/Explicit first solves for the stress-strain field in the nominal area ignoring the presence of imperfections; then it considers the effect of each groove alone. The deformation field inside each groove is computed by enforcing the strain compatibility condition $$ \varepsilon_ {t t} ^ {b} = \varepsilon_ {t t} ^ {a} $$ and the force equilibrium equations $$ F _ {n n} ^ {b} = F _ {n n} ^ {a} \quad \mathrm{and} $$ $$ F _ {n t} ^ {b} = F _ {n t} ^ {a}. $$ The subscripts n and t refer to the directions normal and tangential to the groove. In the above equilibrium equations $F _ { n n }$ and $F _ { n t }$ are forces per unit width in the t-direction. The onset of necking instability is assumed to occur when the ratio of the rate of deformation inside a groove relative to the rate of deformation if no groove were present is greater than a critical value. In


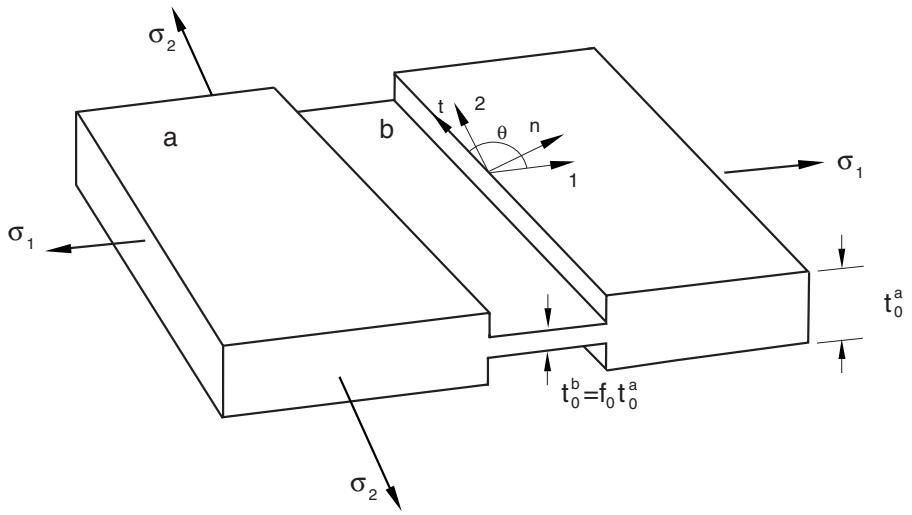

Figure 24.2.2–2 Imperfection model for the M-K analysis. addition, it may not be possible to find a solution that satisfies equilibrium and compatibility conditions once localization initiates at a particular groove; consequently, failure to find a converged solution is also an indicator of the onset of localized necking. For the evaluation of the damage initiation criterion Abaqus/Explicit uses the following measures of deformation severity: $$ f _ {e q} = \frac {\Delta \bar {\varepsilon} _ {b} ^ {p l}}{\Delta \bar {\varepsilon} _ {a} ^ {p l}}, $$ $$ f _ {n n} = \frac {\Delta \varepsilon_ {n n} ^ {b}}{\Delta \varepsilon_ {n n} ^ {a}}, $$ $$ f _ {n t} = \frac {\Delta \varepsilon_ {n t} ^ {b}}{\Delta \varepsilon_ {n t} ^ {a}}. $$ These deformation severity factors are evaluated on each of the specified groove directions and compared with the critical values. (The evaluation is performed only if the incremental deformation is primarily plastic; the M-K criterion will not predict damage initiation if the deformation increment is elastic.) The most unfavorable groove direction is used for the evaluation of the damage initiation criterion, which is given as $$ \omega_ {\mathrm{MK}} = \max \left(\frac {f _ {e q}}{f _ {e q} ^ {\mathrm{crit}}}, \frac {f _ {n n}}{f _ {n n} ^ {\mathrm{crit}}}, \frac {f _ {n t}}{f _ {n t} ^ {\mathrm{crit}}}\right), $$ where , and $f _ { e q } ^ { \mathrm { c r i t } } , f _ { n n } ^ { \mathrm { c r i t } }$ , Jnt $f _ { n t } ^ { \mathrm { c r i t } }$ are the critical values of the deformation severity indices. Damage initiation occurs when $\omega _ { \mathrm { M K } } ~ = ~ 1$ or when a converged solution to the equilibrium and compatibility equations cannot be found. By default, Abaqus/Explicit assumes $f _ { e q } ^ { \mathrm { c r i t } } = \stackrel { } { f } _ { n n } ^ { \mathrm { c r i t } } = f _ { n t } ^ { \mathrm { c r i t } } = \stackrel { } { 1 0 } :$ ; you can specify different values. If one of these parameters is set equal to zero, its corresponding deformation severity factor is not included in the evaluation of the damage initiation criterion. If all of these parameters are set equal to zero, the M-K criterion is based solely on nonconvergence of the equilibrium and compatibility equations. You must specify the fraction, $f _ { 0 } ,$ , equal to the initial thickness at the virtual imperfection divided by the nominal thickness (see Figure 24.2.2–2), as well as the number of imperfections to be used for the evaluation of the M-K damage initiation criterion. It is assumed that these directions are equally spaced angularly. By default, Abaqus/Explicit uses four imperfections located at 0°, 45°, 90°, and $1 3 5 ^ { \circ }$ with respect to the local 1-direction of the material. The initial imperfection size can be defined as a tabular function of angular direction, $f _ { 0 } ( \theta )$ ; this allows the modeling of an anisotropic distribution of flaws in the material. Abaqus/Explicit will use this table to evaluate the thickness of each of the imperfections that will be used for the evaluation of the M-K analysis method. In addition, the initial imperfection size can also be a function of initial temperature and field variables; this allows defining a nonuniform spatial distribution of imperfections. Abaqus/Explicit will compute the initial imperfection size based on the values of temperature and field variables at the beginning of the analysis. The initial size of the imperfection remains a constant property during the rest of the analysis. A general recommendation is to choose the value of $f _ { 0 }$ such that the forming limit predicted numerically for uniaxial strain loading conditions $( \varepsilon _ { \mathrm { m i n o r } } = 0 )$ matches the experimental result. The virtual grooves are introduced to evaluate the onset of necking instability; they do not influence the results in the underlying element. Once the criterion for necking instability is met, the material properties in the element are degraded according to the specified damage evolution law. Input File Usage: Use the following option to specify the initial imperfection thickness relative to the nominal thickness as a tabular function of the angle with respect to the 1-direction of the local material orientation and, optionally, initial temperature and field variables: \*DAMAGE INITIATION, CRITERION=MK, DEPENDENCIES=n Use the following option to specify critical deformation severity factors: \*DAMAGE INITIATION, CRITERION=MK, FEQ= , FNN= ,FNT= Abaqus/CAE Usage: Property module: material editor: Mechanical→Damage for Ductile Metals→M-K Damage Performance considerations for the M-K criterion There can be a substantial increase in the overall computational cost when the M-K criterion is used. For example, the cost of processing a shell element with three section points through the thickness and four imperfections, which is the default for the M-K criterion, increases by approximately a factor of two compared to the cost without the M-K criterion. You can mitigate the cost of evaluating this damage initiation criterion by reducing the number of flaw directions considered or by increasing the number of increments between M-K computations, as explained below. Of course, the effect on the overall analysis cost depends on the fraction of the elements in the model that use this damage initiation criterion. The computational cost per element with the M-K criterion increases by approximately a factor of $$ 1 + 0. 2 5 \frac {n _ {\mathrm{imp}}}{N _ {\mathrm{incr}}}, $$ where $n _ { \mathrm { i m p } }$ is the number of imperfections specified for the evaluation of the M-K criterion and $N _ { \mathrm { i n c r } }$ is the frequency, in number of increments, at which the M-K computations are performed. The coefficient of in the above formula gives a reasonable estimate of the cost increase in most cases, but the actual cost increase may vary from this estimate. By default, Abaqus/Explicit performs the M-K computations on each imperfection at each time increment, $N _ { \mathrm { i n c r } } = 1$ . Care must be taken to ensure that the M-K computations are performed frequently enough to ensure the accurate integration of the deformation field on each imperfection. Input File Usage: Use the following option to specify the number of imperfections and frequency of the M-K analysis: $$ \begin{array}{l} * \text { DAMAGE INITIATION, CRITERION } = \text { MK }, \\ \text { NUMBER IMPERFECTIONS } = n _ {\text { imp }}, \text { FREQUENCY } = N _ {\text { incr }} \end{array} $$ Abaqus/CAE Usage: Property module: material editor: Mechanical→Damage for Ductile Metals→M-K Damage: Number of imperfections and Frequency # Müschenborn-Sonne forming limit diagram (MSFLD) criterion Müschenborn and Sonne (1975) proposed a method to predict the influence of the deformation path on the forming limits of sheet metals on the basis of the equivalent plastic strain, by assuming that the forming limit curve represents the sum of the highest attainable equivalent plastic strains. Abaqus makes use of a generalization of this idea to establish a criterion of necking instability of sheet metals for arbitrary deformation paths. The approach requires transforming the original forming limit curve (without predeformation effects) from the space of major versus minor strains to the space of equivalent plastic strain, $\bar { \varepsilon } ^ { p l }$ , versus ratio of principal strain rates, $\alpha = \dot { \varepsilon } _ { \mathrm { m i n o r } } / \dot { \varepsilon } _ { \mathrm { m a j o r } } .$ . For linear strain paths, assuming plastic incompressibility and neglecting elastic strains: $$ \begin{array}{c} {\alpha = \varepsilon_ {\mathrm{minor}} / \varepsilon_ {\mathrm{major}} \quad \mathrm{and}} \\ {\overline {{\varepsilon}} ^ {p l} = \varepsilon_ {\mathrm{major}} \sqrt {\frac {4}{3} (1 + \alpha + \alpha^ {2})}.} \end{array} $$ As illustrated in Figure 24.2.2–3, linear deformation paths in the FLD transform onto vertical paths in the $\bar { \varepsilon } ^ { p l } { - } \alpha$ diagram (constant value of ). According to the MSFLD criterion, the onset of localized necking occurs when the sequence of deformation states in the $\bar { \varepsilon } ^ { p l } { - } \alpha$ diagram intersects the forming limit curve, as discussed below. It is emphasized that for linear deformation paths both FLD and MSFLD representations are identical and give rise to the same predictions. For arbitrary loading, however, the MSFLD representation takes into account the effects of the history of deformation through the use of the accumulated equivalent plastic strain. For the specification of the MSFLD damage initiation criterion in Abaqus, you can directly provide the equivalent plastic strain at damage initiation as a tabularplastic strain rate, temperature, and predefined field variables, $\bar { \varepsilon } _ { \mathrm { M S F L D } } ^ { p l } ( \alpha , \dot { \bar { \varepsilon } } ^ { p l } , \theta , f _ { i } )$ tionally, equivalent. Alternatively, you (a) FLD

line

| ε_major | ε_minor | | ------- | ------- | | 1.0 | 0.0 | | 0.8 | 0.1 | | 0.6 | 0.2 | | 0.4 | 0.3 | | 0.2 | 0.4 | | 0.0 | 0.5 | | 0.2 | 0.6 | | 0.4 | 0.7 | | 0.6 | 0.8 | | 0.8 | 0.9 | | 1.0 | 1.0 |

(b) MSFLD

line

| α | ε^pl | | ---- | ----- | | 0.0 | 0.8 | | 0.2 | 0.6 | | 0.4 | 0.4 | | 0.6 | 0.3 | | 0.8 | 0.2 | | 1.0 | 0.1 | | 1.2 | 0.2 | | 1.4 | 0.3 | | 1.6 | 0.4 | | 1.8 | 0.5 | | 2.0 | 0.6 | | 2.2 | 0.7 | | 2.4 | 0.8 | | 2.6 | 0.9 | | 2.8 | 1.0 | | 3.0 | 1.1 | | 3.2 | 1.2 | | 3.4 | 1.3 | | 3.6 | 1.4 | | 3.8 | 1.5 | | 4.0 | 1.6 | | 4.2 | 1.7 | | 4.4 | 1.8 | | 4.6 | 1.9 | | 4.8 | 2.0 | | 5.0 | 2.1 | | 5.2 | 2.2 | | 5.4 | 2.3 | | 5.6 | 2.4 | | 5.8 | 2.5 | | 6.0 | 2.6 | | 6.2 | 2.7 | | 6.4 | 2.8 | | 6.6 | 2.9 | | 6.8 | 3.0 | | 7.0 | 3.1 | | 7.2 | 3.2 | | 7.4 | 3.3 | | 7.6 | 3.4 | | 7.8 | 3.5 | | 8.0 | 3.6 | | 8.2 | 3.7 | | 8.4 | 3.8 | | 8.6 | 3.9 | | 8.8 | 4.0 | | 9.0 | 4.1 | | 9.2 | 4.2 | | 9.4 | 4.3 | | 9.6 | 4.4 | | 9.8 | 4.5 | | 10.0 | 4.6 |

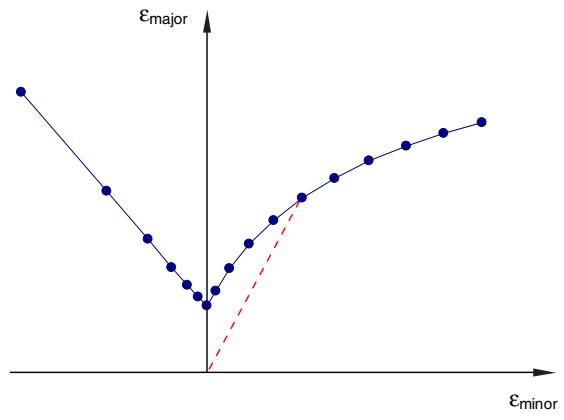

Figure 24.2.2–3 Transformation of the forming limit curve from traditional FLD representation (a) to MSFLD representation (b). Linear deformation paths transform onto vertical paths. can specify the curve in the traditional FLD format (in the space of major and minor strains) by providing a tabular function of the form $\varepsilon _ { \mathrm { m a j o r } } ( \varepsilon _ { \mathrm { m i n o r } } , \dot { \varepsilon } ^ { p l } , \theta , f _ { i } )$ . In this case Abaqus will automatically transform the data into the $\bar { \varepsilon } ^ { p l } { - } \alpha$ format. Let $\omega _ { \mathrm { M S F L D } }$ represent the ratio of the current equivalent plastic strain, $\bar { \varepsilon } ^ { p l }$ , to the equivalent plastic strain on the limit curve evaluated at the current values of $\alpha ;$ strain rate, $\dot { \bar { \varepsilon } } ^ { p l } .$ ; temperature, $\theta ;$ and predefined field variables, $f _ { i }$ : $$ \omega_ {\mathrm{MSFLD}} = \frac {\bar {\varepsilon} ^ {p l}}{\bar {\varepsilon} _ {\mathrm{MSFLD}} ^ {p l} (\alpha , \dot {\bar {\varepsilon}} ^ {p l} , \theta , f _ {i})}. $$ The MSFLD criterion for necking instability is met when the condition $\omega _ { \mathrm { M S F L D } } = 1$ is satisfied. Necking instability also occurs if the sequence of deformation states in the $\bar { \varepsilon } ^ { p l } { - } \alpha$ diagram intersects the limit curve due to a sudden change in the straining direction. This situation is illustrated in Figure 24.2.2–4. As changes from $\alpha _ { t }$ to $\alpha _ { t + \Delta t }$ , the line connecting the corresponding points in the $\bar { \varepsilon } ^ { p l } { - } \alpha$ diagram intersects facthtertn with thefact that $\bar { \varepsilon } _ { t + \Delta t } ^ { p l } \dot { < } \bar { \varepsilon } _ { \mathrm { M S F L D } } ^ { p l } \big ( \alpha _ { t + \Delta t } \big )$ en this situation occurs, the MSFLD criterion . For output purposes Abaqus sets the value of $\omega _ { \mathrm { M S F L D } }$ d despite theequal to one The equivalent plastic strain $\bar { \varepsilon } ^ { p l }$ used for the evaluation of the MSFLD criterion in Abaqus is accumulated only over increments that result in an increase of the element area. Strain increments associated with a reduction of the element area cannot cause necking and do not contribute toward the evaluation of the MSFLD criterion. If the value of $\alpha$ lies outside the range of specified tabular values, Abaqus extrapolates the value of equivalent plastic strain for initiation of necking assuming that the slope at the endpoints of the curve remains constant. Extrapolation with respect to strain rate, temperature, and field variables follows the

line

| α | ε̅^pl | |------------|--------| | α_t | Low | | α_t + Δt | Low | | α | High |

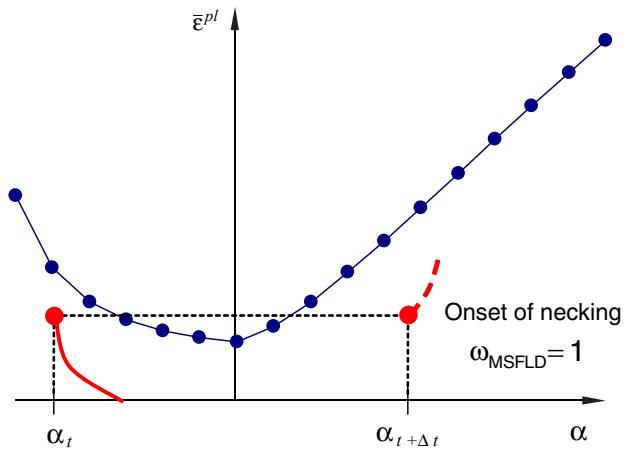

Figure 24.2.2–4 Illustration of how a sudden change in the straining direction, from $\alpha _ { t }$ to $\alpha _ { t + \Delta t }$ can produce a horizontal intersection with the limit curve and lead to onset of necking. standard conventions: the property is assumed to be constant outside the specified range of strain rate, temperature, and field variables (see “Material data definition,” Section 21.1.2). As discussed in “Progressive damage and failure of ductile metals,” Section 2.2.21 of the Abaqus Verification Guide, predictions of necking instability based on the MSFLD criterion agree remarkably well with predictions based on the Marciniak and Kuczynski criterion, at significantly less computational cost than the Marciniak and Kuczynski criterion. There are some situations, however, in which the MSFLD criterion may overpredict the amount of formability left in the material. This occurs in situations when, sometime during the loading history, the material reaches a state that is very close to the point of necking instability and is subsequently strained in a direction along which it can sustain further deformation. In this case the MSFLD criterion may predict that the amount of additional formability in the new direction is greater than that predicted with the Marciniak and Kuczynski criterion. However, this situation is often not a concern in practical forming applications where safety factors in the forming limit diagrams are commonly used to ensure that the material state is sufficiently far away from the point of necking. Refer to “Progressive damage and failure of ductile metals,” Section 2.2.21 of the Abaqus Verification Guide, for a comparative analysis of these two criteria. For reasons similar to those discussed earlier for the FLD criterion, Abaqus evaluates the MSFLD criterion using the strains at the midplane through the thickness of the element (or the layer, in the case of composite shells with several layers), ignoring bending effects. Therefore, the MSFLD criterion cannot be used to model failure under bending loading; other failure models (such as ductile and shear failure) are more suitable for such loading. Once the MSFLD damage initiation criterion is met, the evolution of damage is driven independently at each material point through the thickness of the element based on the local deformation at that point. Thus, although bending effects do not affect the evaluation of the MSFLD criterion, they may affect the rate of evolution of damage.

Input File Usage:

Use the following option to specify the MSFLD damage initiation criterion by providing the limit equivalent plastic strain as a tabular function of $\alpha$ (default):*DAMAGE INITIATION, CRITERION=MSFLD, DEFINITION=MSFLDUse the following option to specify the MSFLD damage initiation criterion by providing the limit major strain as a tabular function of minor strain:*DAMAGE INITIATION, CRITERION=MSFLD, DEFINITION=FLD

Abaqus/CAE Usage:

Property module: material editor: Mechanical→Damage for Ductile Metals→MSFLD Damage

Numerical evaluation of the principal strain rates ratio The ratio of principal strain rates, $\alpha = \dot { \varepsilon } _ { \mathrm { m i n o r } } / \dot { \varepsilon } _ { \mathrm { m a j o r } }$ , can jump in value due to sudden changes in the deformation path. Special care is required during explicit dynamic simulations to avoid nonphysical jumps in triggered by numerical noise, which may cause a horizontal intersection of the deformation state with the forming limit curve and lead to the premature prediction of necking instability. To overcome this problem, rather than computing as a ratio of instantaneous strain rates, Abaqus/Explicit periodically updates $\alpha$ based on accumulated strain increments after small but significant changes in the equivalent plastic strain. The threshold value for the change in equivalent plastic strain triggering an update of is denoted as $( \Delta \bar { \varepsilon } ^ { p l } ) ^ { * }$ , and is approximated as $$ \alpha = \frac {(\Delta \varepsilon) _ {\mathrm{minor}} ^ {*}}{(\Delta \varepsilon) _ {\mathrm{major}} ^ {*}}, $$ where $( \Delta \varepsilon ) _ { \mathrm { m i n o r } } ^ { \ast }$ and $( \Delta \varepsilon ) _ { \mathrm { m a j o r } } ^ { \ast }$ are principal values of the accumulated plastic strain since the previous update of . The default value of $( \Delta \bar { \varepsilon } ^ { p l } ) ^ { * }$ is 0.002 (0.2%). In addition, Abaqus/Explicit supports the following filtering method for the computation of : $$ \alpha_ {t + (\Delta t) ^ {*}} = (1 - \omega) \alpha_ {t} + \omega \frac {(\Delta \varepsilon) _ {\mathrm{minor}} ^ {*}}{(\Delta \varepsilon) _ {\mathrm{major}} ^ {*}}, $$ where $( \Delta t ) ^ { * }$ represents the accumulated time over the analysis increments required to have an increase in equivalent plastic strain of at least $( \Delta \bar { \varepsilon } ^ { p l } ) ^ { * }$ . The factor $( 0 < \omega \leq 1 )$ facilitates filtering high-frequency oscillations. This filtering method is usually not necessary provided that an appropriate value of $( \Delta \bar { \varepsilon } ^ { p l } ) ^ { * }$ is used. You can specify the value of directly. The default value is $\omega = 1 . 0$ (no filtering). In Abaqus/Standard is computed at every analysis increment as $\alpha _ { t + \Delta t } = \Delta \varepsilon _ { \mathrm { m i n o r } } / \Delta \varepsilon _ { \mathrm { m a j o r } } ,$ , without using either of the above filtering methods. However, you can still specify values for $( \Delta \bar { \varepsilon } ^ { p l } ) ^ { * }$ and $\omega ;$ and these values can be imported into any subsequent analysis in Abaqus/Explicit. Input File Usage: \*DAMAGE INITIATION, CRITERION=MSFLD, $\mathrm { P E I N C } { = } ( \Delta \bar { \varepsilon } ^ { p l } ) ^ { * }$ , $\mathrm { O M E G A } { = } \omega$ Abaqus/CAE Usage: Property module: material editor: Mechanical→Damage for Ductile Metals→MSFLD Damage: Omega: The value for $( \Delta \bar { \varepsilon } ^ { p l } ) ^ { * }$ cannot be specified directly in Abaqus/CAE.
