$$ \boldsymbol {M} _ {1} = \left[ \begin{array}{c c c c} \frac {2}{3} & - \frac {1}{3} & 0 & - \frac {1}{3} \\ & \frac {2}{3} & 0 & - \frac {1}{3} \\ \text { Symmetric } & 2 & 0 \\ & & & \frac {2}{3} \end{array} \right], \tag {8.44} $$ and $$ \boldsymbol {M} _ {2} = \left[ \begin{array}{c c c c} \left(\sigma_ {x} ^ {\prime}\right) ^ {2} & \sigma_ {x} ^ {\prime} \sigma_ {y} ^ {\prime} & 2 \sigma_ {x} ^ {\prime} \tau_ {x y} & \sigma_ {x} ^ {\prime} \sigma_ {z} ^ {\prime} \\ & \left(\sigma_ {y} ^ {\prime}\right) ^ {2} & 2 \sigma_ {y} ^ {\prime} \tau_ {x y} & \sigma_ {y} ^ {\prime} \sigma_ {z} ^ {\prime} \\ \text { Symmetric } & & 4 \left(\tau_ {x y}\right) ^ {2} & 2 \tau_ {x y} \sigma_ {z} ^ {\prime} \\ - & - & - & - & - \\ & & & & \left(\sigma_ {z} ^ {\prime}\right) ^ {2} \end{array} \right], \tag {8.45} $$ and $J_{2}'$ is given by (7.76). For plane stress and plane strain problems only the upper $3 \times 3$ partition is employed while for axisymmetric situations the complete matrices are utilised with $x$ and $y$ being replaced by $r$ and $z$ respectively. Similar expressions can be derived for the Tresca, Mohr–Coulomb and Drucker–Prager yield criteria by employing the appropriate expression for F in (8.36) and repeating the above calculations. The form of F is given in (7.63), (7.65) and (7.66) for the Tresca, Mohr–Coulomb and Drucker–Prager laws respectively. # 8.6 Program structure The computation sequence for the program is shown in Fig. 8.1. The program structure follows closely that for static elasto-plastic analysis described in Chapter 7. In fact, the majority of the subroutines utilised are common to both applications and it is only the additional subroutines required that are described in this chapter. For the viscoplastic program the time stepping loop replaces the nonlinear solution iteration loop for conventional plasticity and subroutine STEPVP, whose main role is to evaluate quantities at the end of a timestep, replaces the plasticity subroutine RESIDU. In this chapter we need to describe in detail subroutines STIFVP, TANGVP, STEPVP, FLOWVP and STEADY. The descriptions of all other subroutines required for assembly of a working viscoplastic program have been given in Chapters 6 and 7. The version described is restricted to the case of infinitesimal strains. The modifications required to include large deformation effects are straightforward and are left as an exercise to the reader. Furthermore, for implicit schemes, only the Von Mises yield criterion is considered. The list of material properties accepted in subroutine INPUT described in Section 6.5.1 must be extended beyond those required for elasto-plastic analysis, since additional material parameters are required to define the ![](images/page-292_dd0bd1c5b3d69ce32bca506ff681d815b359be4ee2fc3475d6468efc5840cfb8.jpg)
flowchart ```mermaid graph TD A["START"] --> B["DIMEN
Presents the variables associated with the dynamic dimensioning process"] B --> C["INPUT
Inputs data defining geometry, boundary conditions and material properties"] C --> D["LOADPS
Evaluates the equivalent nodal forces for pressure loading, gravity loading, etc."] D --> E["ZERO
Sets to zero arrays required for accumulation of data"] E --> F["INCREM
Increments the applied loads according to specified load factors"] F --> G["STIFVP
Calculates the element stiffnesses as K_T^n(σ^n) (Eq. (8.24))"] F --> H["TANGVP
Evaluates D̂^n according to (8.18)"] G --> I["FRONT
Solves the simultaneous equation system by the frontal method, i.e. Δd^n = [K_T^n"]^-1ΔV^n d^{n+1} = d^n + Δd^n] H --> I I --> J["STEPVP
Evaluates quantities at the end of the timestep
a) Δσ^n = D̂^n(B^nΔd - ε̇_vp^nΔt_n) b) σ^{n+1} = σ^n + Δσ^n
c) ε̇_vp^{n+1} = ε̇_vp^n + ε̇_vp^nΔt_n d) Δt_{n+1}"] I --> K["INVAR
Evaluates the effective stress level"] I --> L["YIELDF & FLOWVP
Determines:—
a) The flow vector, a
b) ε̇_vp^{n+1} = γ(Φ)a^{n+1}"] J --> M["OUTPUT
Prints the results for the current timestep"] L --> M M --> N["END"] O["LOAD INCREMENT LOOP"] --> F P["TIME STEPPING LOOP"] --> F Q["END"] --> M ```

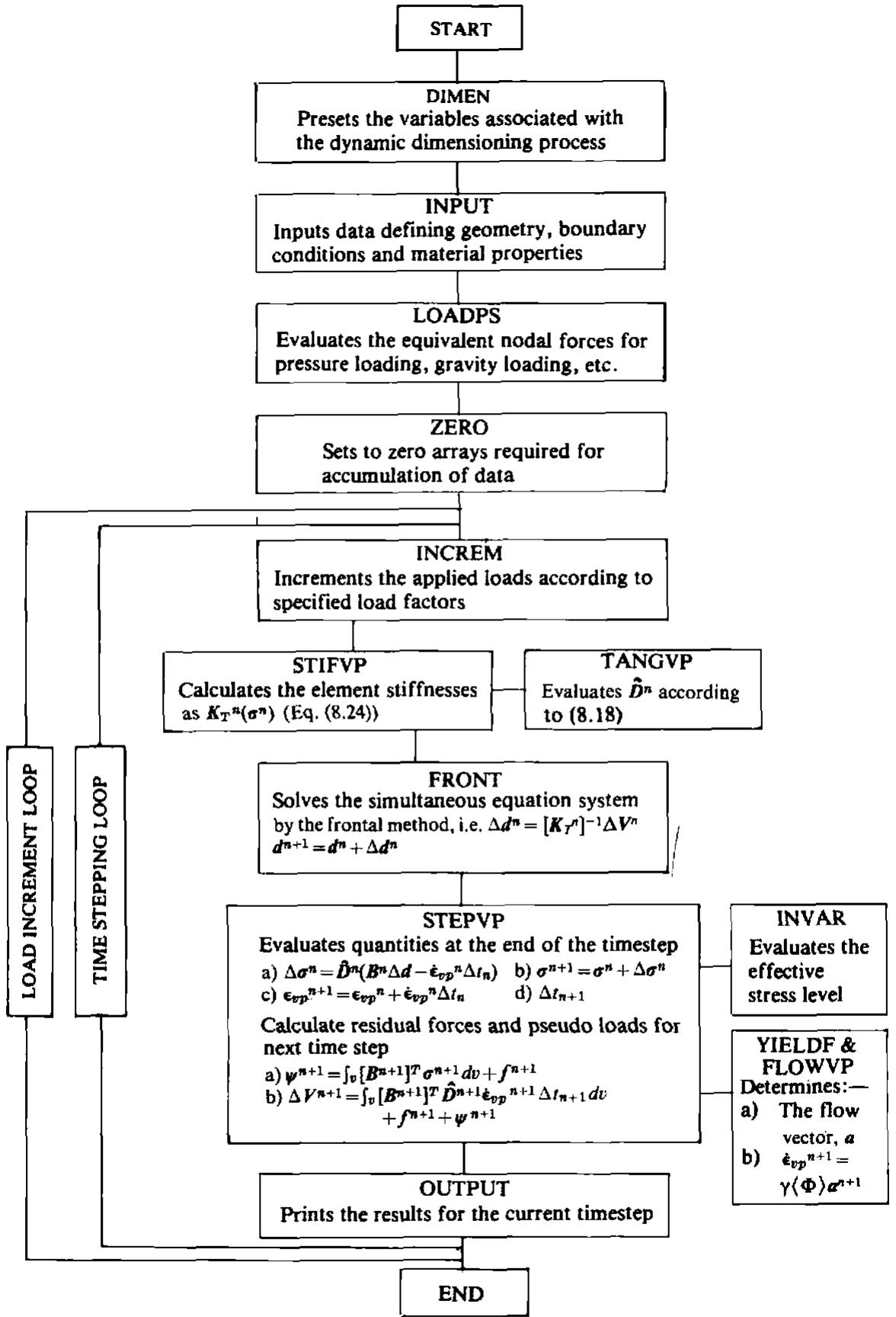

Fig. 8.1 Flow sequence for the two-dimensional elasto-viscoplastic stress analysis program. viscoplastic flow. This is accomplished by specifying the value of NPROP as 10 in subroutine DIMEN, described in Section 7.8.1, and inputting the following properties for each different material.
PROPS(NUMAT, 1)Elastic modulus, $E$ .
PROPS(NUMAT, 2)Poissons ratio, $\nu$ .
PROPS(NUMAT, 3)Material thickness, $t$ .
PROPS(NUMAT, 4)Material mass density, $\rho$ .
PROPS(NUMAT, 5)Uniaxial yield stress $\sigma_{Y}$ (Tresca and Von Mises solids); Cohesion $c$ (Mohr–Coulomb and Drucker–Prager materials).
PROPS(NUMAT, 6)Hardening parameter $H'$ for linear strain hardening.
PROPS(NUMAT, 7)Angle of internal friction for Mohr–Coulomb and Drucker–Prager materials only.
PROPS(NUMAT, 8)The fluidity parameter, $\gamma$ .
PROPS(NUMAT, 9)The coefficient $M$ in (8.8) or coefficient $N$ in (8.9).
PROPS(NUMAT, 10)Indicator specifying type of flow function to be employed:0 – Flow function (8.8)1 – Flow function (8.9)
# 8.7 Formulation of the tangential stiffness matrix The role of the subroutines described in this section is to calculate the tangential stiffness matrix for each element according to $(8.24)$ . The complete operation is shared between three subroutines which will now be described. # 8.7.1 Subroutine STIFVP This subroutine controls the overall formulation of the tangential stiffness matrix for each element and is very similar to subroutine STIFFP, described in Section 7.8.5, which performs the same task for conventional plasticity. For the case of small deformations, matrix $B^{n}$ is constant and equal to $B_{0}$ the usual infinitesimal elastic value. Matrix $B_{0}$ is given by subroutine BMATPS described in Section 6.4.7. To evaluate $K_{T^{n}}$ it is necessary to find $\hat{D}^{n}$ whose precise form is given by (8.18). With the normal elastic material matrix D replaced by $\hat{D}^{n}$ , the stiffness evaluation follows the standard procedure described in Section 7.8.5. Subroutine STIFVP can now be presented and described.
SUBROUTINE STIFVP(COORD,IINCS,LNODS,MATNO,MEVAB,MMATS,STVP1
MPOIN,MTOTV,NELEM,NEVAB,NGAUS,NNODE,NSTRE,STVP2
NSTR1,POSGP,PROPS,WEIGP,MELEM,MTOTG,STVP3
STRSG,NTYPE,NCRIT,TIMEX,DTIME)STVP4
C***************STVP5
CSTVP6
C**** THIS SUBROUTINE EVALUATES THE STIFFNESS MATRIX FOR EACH ELEMENTSTVP7
C IN TURNSTVP8
CSTVP9
C***************STVP10
DIMENSION BMATX(4,18),CARTD(2,9),COORD(MPOIN,2),DBMAT(4,18),STVP11
DERIV(2,9),DEVIA(4),DMATX(4,4),STVP12
ELCOD(2,9),EPSTN(MTOTG),ESTIF(18,18),LNODS(MELEM,9),STVP13
MATNO(MELEM),POSGP(4),PROPS(MMATS,10),SHAPE(9),STVP14
WEIGP(4),STRES(4),STRSG(4,MTOTG),STVP15
```asm DVECT(4), AVECT(4), GPCOD(2,9) TWOPI=6.283185308 REWIND 1 KGAUS=0 STVP 16 STVP 17 STVP 18 STVP 19 STVP 20 STVP 21 STVP 22 STVP 23 STVP 24 STVP 25 STVP 26 STVP 27 STVP 28 STVP 29 STVP 30 STVP 31 STVP 32 STVP 33 STVP 34 STVP 35 STVP 36 STVP 37 STVP 38 STVP 39 STVP 40 STVP 41 STVP 42 STVP 43 STVP 44 STVP 45 STVP 46 STVP 47 STVP 48 STVP 49 STVP 50 STVP 51 STVP 52 STVP 53 STVP 54 STVP 55 STVP 56 STVP 57 STVP 58 STVP 59 STVP 60 STVP 61 STVP 62 STVP 63 STVP 64 STVP 65 STVP 66 STVP 67 STVP 68 STVP 69 STVP 70 STVP 71 STVP 72 STVP 73 STVP 74 STVP 75 STVP 76 STVP 77 STVP 78 STVP 79 STVP 80 STVP 81 STVP 82 STVP 83 STVP 84 STVP 85 STVP 86 STVP 87 STVP 88 STVP 89 STVP 90 STVP 91 STVP 92 STVP 93 STVP 94 STVP 95 STVP 96 STVP 97 STVP 98 STVP 99 STVP 100 STVP 101 STVP 102 STVP 103 STVP 104 STVP 105 STVP 106 STVP 107 STVP 108 STVP 109 STVP 110 STVP 111 STVP 112 STVP 113 STVP 114 STVP 115 STVP 116 STVP 117 STVP 118 STVP 119 STVP 120 STVP 121 STVP 122 STVP 123 STVP 124 STVP 125 STVP 126 STVP 127 STVP 128 STVP 129 STVP 130 STVP 131 STVP 132 STVP 133 STVP 134 STVP 135 STVP 136 STVP 137 STVP 138 STVP 139 STVP 140 STVP 141 STVP 142 STVP 143 STVP 144 STVP 145 STVP 146 STVP 147 STVP 148 STVP 149 STVP 150 STVP 151 STVP 152 STVP 153 STVP 154 STVP 155 STVP 156 STVP 157 STVP 158 STVP 159 STVP 160 STVP 161 STVP 162 STVP 163 STVP 164 STVP 165 STVP 166 STVP 167 STVP 168 STVP 169 STVP 170 STVP 171 STVP 172 STVP 173 STVP 174 STVP 175 STVP 176 STVP 177 STVP 178 STVP 179 STVP 180 STVP 181 STVP 182 STVP 183 STVP 184 STVP 185 STVP 186 STVP 187 STVP 188 STVP 189 STVP 190 STVP 191 STVP 192 STVP 193 STVP 194 STVP 195 STVP 196 STVP 197 STVP 198 STVP 199 STVP 200 STVP 201 STVP 202 STVP 203 STVP 204 STVP 205 STVP 206 STVP 207 STVP 208 STVP 209 STVP 210 STVP 211 STVP 212 STVP 213 STVP 214 STVP 215 STVP 216 STVP 217 STVP 218 STVP 219 STVP 220 STVP 221 STVP 222 STVP 223 STVP 224 STVP 225 STVP 226 STVP 227 STVP 228 STVP 229 STVP 230 STVP 231 STVP 232 STVP 233 STVP 234 STVP 235 STVP 236 STVP 237 STVP 238 STVP 239 STVP 240 STVP 241 STVP 242 STVP 243 STVP 244 STVP 245 STVP 246 STVP 247 STVP 248 STVP 249 STVP 250 STVP 251 STVP 252 STVP 253 STVP 254 STVP 255 STVP 256 STVP 257 STVP 258 STVP 259 STVP 260 STVP 261 STVP 262 STVP 263 STVP 264 STVP 265 STVP 266 STVP 267 STVP 268 STVP 269 STVP 270 STVP 271 STVP 272 STVP 273 STVP 274 STVP 275 STVP 276 STVP 277 STVP 278 STVP 279 STVP 280 STVP 281 STVP 282 STVP 283 STVP 284 STVP 285 STVP 286 STVP 287 STVP 288 STVP 289 STVP 290 STVP 291 STVP 292 STVP 293 STVP 294 STVP 295 STVP 296 STVP 297 STVP 298 STVP 299 STVP 300 STVP 301 STVP 302 STVP 303 STVP 304 STVP 305 STVP 306 STVP 307 STVP 308 STVP 309 STVP 310 STVP 311 STVP 312 STVP 313 STVP 314 STVP 315 STVP 316 STVP 317 STVP 318 STVP 319 STVP 320 STVP 321 STVP 322 STVP 323 STVP 324 STVP 325 STVP 326 STVP 327 STVP 328 STVP 329 STVP 330 STVP 331 STVP 332 STVP 333 STVP 334 STVP 335 STVP 336 STVP 337 STVP 338 STVP 339 STVP 340 STVP 341 STVP 342 STVP 343 STVP 344 STVP 345 STVP 346 STVP 347 STVP 348 STVP 349 STVP 350 STVP 351 STVP 352 STVP 353 STVP 354 STVP 355 STVP 356 STVP 357 STVP 358 STVP 359 STVP 360 STVP 361 STVP 362 STVP 363 STVP 364 STVP 365 STVP 366 STVP 367 STVP 368 STVP 369 STVP 370 STVP 371 STVP 372 STVP 373 STVP 374 STVP 375 STVP 376 STVP 377 STVP 378 STVP 379 STVP 380 STVP 381 STVP 382 STVP 383 STVP 384 STVP 385 STVP 386 STVP 387 STVP 388 STVP 389 STVP 390 STVP 391 STVP 392 STVP 393 STVP 394 STVP 395 STVP 396 STVP 397 STVP 398 STVP 399 STVP 400 STVP 401 STVP 402 STVP 403 STVP 404 STVP 405 STVP 406 STVP 407 STVP 408 STVP 409 STVP 410 STVP 411 STVP 412 STVP 413 STVP 414 STVP 415 STVP 416 STVP 417 STVP 418 STVP 419 STVP 420 STVP 421 STVP 422 STVP 423 STVP 424 STVP 425 STVP 426 STVP 427 STVP 428 STVP 429 STVP 430 STVP 431 STVP 432 STVP 433 STVP 434 STVP 435 STVP 436 STVP 437 STVP 438 STVP 439 STVP 440 STVP 441 STVP 442 STVP 443 STVP 444 STVP 445 STVP 446 STVP 447 STVP 448 STVP 449 STVP 450 STVP 451 STVP 452 STVP 453 STVP 454 STVP 455 STVP 456 STVP 457 STVP 458 STVP 459 STVP 460 STVP 461 STVP 462 STVP 463 STVP 464 STVP 465 STVP 466 STVP 467 STVP 468 STVP 469 STVP 470 STVP 471 STVP 472 STVP 473 STVP 474 STVP 475 STVP 476 STVP 477 STVP 478 STVP 479 STVP 480 STVP 481 STVP 482 STVP 483 STVP 484 STVP 485 STVP 486 STVP 487 STVP 488 STVP 489 STVP 490 STVP 491 STVP 492 STVP 493 STVP 494 STVP 495 STVP 496 STVP 497 STVP 498 STVP 499 STVP 500 STVP 501 STVP 502 STVP 503 STVP 504 STVP 505 STVP 506 STVP 507 STVP 508 STVP 509 STVP 510 STVP 511 STVP 512 STVP 513 STVP 514 STVP 515 STVP 516 STVP 517 STVP 518 STVP 519 STVP 520 STVP 521 STVP 522 STVP 523 STVP 524 STVP 525 STVP 526 STVP 527 STVP 528 STVP 529 STVP 530 STVP 531 STVP 532 STVP 533 STVP 534 STVP 535 STVP 536 STVP 537 STVP 538 STVP 539 STVP 540 STVP 541 STVP 542 STVP 543 STVP 544 STVP 545 STVP 546 STVP 547 STVP 548 STVP 549 STVP 550 STVP 551 STVP 552 STVP 553 STVP 554 STVP 555 STVP 556 STVP 557 STVP 558 STVP 559 STVP 560 STVP 561 STVP 562 STVP 563 STVP 564 STVP 565 STVP 566 STVP 567 STVP 568 STVP 569 STVP 570 STVP 571 STVP 572 STVP 573 STVP 574 STVP 575 STVP 576 STVP 577 STVP 578 STVP 579 STVP 580 STVP 581 STVP 582 STVP 583 STVP 584 STVP 585 STVP 586 STVP 587 STVP 588 STVP 589 STVP 590 STVP 591 STVP 592 STVP 593 STVP 594 STVP 595 STVP 596 STVP 597 STVP 598 STVP 599 STVP 600 STVP 601 STVP 602 STVP 603 STVP 604 STVP 605 STVP 606 STVP 607 STVP 608 STVP 609 STVP 610 STVP 611 STVP 612 STVP 613 STVP 614 STVP 615 STVP 616 STVP 617 STVP 618 STVP 619 STVP 620 STVP 621 STVP 622 STVP 623 STVP 624 STVP 625 STVP 626 STVP 627 STVP 628 STVP 629 STVP 630 STVP 631 STVP 632 STVP 633 STVP 634 STVP 635 STVP 636 STVP 637 STVP 638 STVP 639 STVP 640 STVP 641 STVP 642 STVP 643 STVP 644 STVP 645 STVP 646 STVP 647 STVP 648 STVP 649 STVP 650 STVP 651 STVP 652 STVP 653 STVP 654 STVP 655 STVP 656 STVP 657 STVP 658 STVP 659 STVP 660 STVP 661 STVP 662 STVP 663 STVP 664 STVP 665 STVP 666 STVP 667 STVP 668 STVP 669 STVP 670 STVP 671 STVP 672 STVP 673 STVP 674 STVP 675 STVP 676 STVP 677 STVP 678 STVP 679 STVP 680 STVP 681 STVP 682 STVP 683 STVP 684 STVP 685 STVP 686 STVP 687 STVP 688 STVP 689 STVP 690 STVP 691 STVP 692 STVP 693 STVP 694 STVP 695 STVP 696 STVP 697 STVP 698 STVP 699 STVP 700 STVP 701 STVP 702 STVP 703 STVP 704 STVP 705 STVP 706 STVP 707 STVP 708 STVP 709 STVP 710 STVP 711 STVP 712 STVP 713 STVP 714 STVP 715 STVP 716 STVP 717 STVP 718 STVP 719 STVP 720 STVP 721 STVP 722 STVP 723 STVP 724 STVP 725 STVP 726 STVP 727 STVP 728 STVP 729 STVP 730 STVP 731 STVP 732 STVP 733 STVP 734 STVP 735 STVP 736 STVP 737 STVP 738 STVP 739 STVP 740 STVP 741 STVP 742 STVP 743 STVP 744 STVP 745 STVP 746 STVP 747 STVP 748 STVP 749 STVP 750 STVP 751 STVP 752 STVP 753 STVP 754 STVP 755 STVP 756 STVP 757 STVP 758 STVP 759 STVP 760 STVP 761 STVP 762 STVP 763 STVP 764 STVP 765 STVP 766 STVP 767 STVP 768 STVP 769 STVP 770 STVP 771 STVP 772 STVP 773 STVP 774 STVP 775 STVP 776 STVP 777 STVP 778 STVP 779 STVP 780 STVP 781 STVP 782 STVP 783 STVP 784 STVP 785 STVP 786 STVP 787 STVP 788 STVP 789 STVP 790 STVP 791 STVP 792 STVP 793 STVP 794 STVP 795 STVP 796 STVP 797 STVP 798 STVP 799 STVP 800 STVP 801 STVP 802 STVP 803 STVP 804 STVP 805 STVP 806 STVP 807 STVP 808 STVP 809 STVP 810 STVP 811 STVP 812 STVP 813 STVP 814 STVP 815 STVP 816 STVP 817 STVP 818 STVP 819 STVP 820 STVP 821 STVP 822 STVP 823 STVP 824 STVP 825 STVP 826 STVP 827 STVP 828 STVP 829 STVP 830 STVP 831 STVP 832 STVP 833 STVP 834 STVP 835 STVP 836 STVP 837 STVP 838 STVP 839 STVP 840 STVP 841 STVP 842 STVP 843 STVP 844 STVP 845 STVP 846 STVP 847 STVP 848 STVP 849 STVP 850 STVP 851 STVP 852 STVP 853 STVP 854 STVP 855 STVP 856 STVP 857 STVP 858 STVP 859 STVP 860 STVP 861 STVP 862 STVP 863 STVP 864 STVP 865 STVP 866 STVP 867 STVP 868 STVP 869 STVP 870 STVP 871 STVP 872 STVP 873 STVP 874 STVP 875 STVP 876 STVP 877 STVP 878 STVP 879 STVP 880 STVP 881 STVP 882 STVP 883 STVP 884 STVP 885 STVP 886 STVP 887 STVP 888 STVP 889 STVP 890 STVP 891 STVP 892 STVP 893 STVP 894 STVP 895 STVP 896 STVP 897 STVP 898 STVP 899 STVP 900 STVP 901 STVP 902 ```
50 CONTINUESTVP81
CSTVP82
C*** CONSTRUCT THE LOWER TRIANGLE OF THE STIFFNESS MATRIXSTVP83
CSTVP84
DO 60 IEVAB=1,NEVABSTVP85
DO 60 JEVAB=1,NEVABSTVP86
60 ESTIF(JEVAB,IEVAB)=ESTIF(IEVAB,JEVAB)STVP87
CSTVP88
C*** STORE THE STIFFNESS MATRIX,STRESS MATRIX AND SAMPLING POINTSTVP89
C COORDINATES FOR EACH ELEMENT ON DISC FILESTVP90
CSTVP91
WRITE(1) ESTIFSTVP92
70 CONTINUESTVP93
RETURNSTVP94
ENDSTVP95
STVP 17Compute the value of $2\pi$ .
STVP 18Rewind the disc file on which the element stiffness matrices will be stored in turn.
STVP 19Set to zero the counter which indicates the overall Gauss point location.
STVP 23Enter the loop over each element in the structure.
STVP 24Identify the material property type of the current element.
STVP 28–33Store the element nodal coordinates in the local array ELCOD for convenient use later.
STVP 34Identify the element thickness.
STVP 38–40Zero the element stiffness array.
STVP 41Set to zero the element Gauss point counter.
STVP 45–48Enter the numerical integration loops and locate the position $(\xi, \eta)$ of the current point.
STVP 49–50Increment the local and global Gauss point counters.
STVP 54Call subroutine MODPS to evaluate the elasticity matrix, $D$ .
STVP 58Evaluate the shape functions $N_i$ and $\partial N_i/\partial \xi$ , $\partial N_i/\partial \eta$ for the current Gauss point.
STVP 59–60Evaluate the Gauss point coordinates, GPCOD(IDIME, KGASP), the determinant of the Jacobian matrix $|J|$ and the Cartesian derivatives of the shape functions $\partial N_i/\partial x$ , $\partial N_i/\partial y$ (or $\partial N_i/\partial r$ , $\partial N_i/\partial z$ for axisymmetric problems).
STVP 61–63Calculate the elemental volume for numerical integration as $|J|W_\xi W_\eta$ taking care to multiply by the appropriate element thickness or by $2\pi r$ for axisymmetric problems.
STVP 67Evaluate the $B$ matrix.
STVP 68–69Store the current stresses in a local array.
STVP 70–71For an implicit or semi-implicit timestepping scheme $(\Theta \neq 0)$ , call subroutine TANGVP to evaluate $\hat{D}^n$ which is stored as DMATX.
STVP 72Evaluate $DB$ (or $\hat{D}^n B$ for implicit schemes).
STVP 76–80Compute the upper triangle of the element stiffness matrix as
$$ \int_ {\Omega} \boldsymbol {B} ^ {T} \hat {\boldsymbol {D}} ^ {n} \boldsymbol {B} d \Omega . $$ STVP 81 End of loop for numerical integration. STVP 85–87 Complete the lower triangle of the element stiffness matrix by symmetry. STVP 92 Store the element stiffness matrix on disc file 1. STVP 93 Return to process the next element. # 8.7.2 Subroutine TANGVP The function of this subroutine is to evaluate $\hat{D}^{n}$ for use in (8.24). Matrix $\hat{D}^{n}$ , which is defined in (8.18), is stress dependent and therefore must be calculated for each Gaussian integrating point in turn. The computational sequence followed is: a) Evaluate $H^n$ according to (8.42) b) Calculate $C^n$ according to (8.14) c) Evaluate $\tilde{D}^n$ according to (8.18) Two forms of the flow function $\Phi$ are considered as defined in (8.8) and (8.9). Thus, for use in (8.43), we have $$ \frac {d \Phi}{d F} = \frac {M}{F _ {0}} e ^ {M \left(\frac {F - F _ {0}}{F _ {0}}\right)} $$ or $$ \frac {d \Phi}{d F} = \frac {N}{F _ {0}} \left(\frac {F - F _ {0}}{F _ {0}}\right) ^ {N - 1}. \tag {8.46} $$ Array DMATX which originally contains the elastic matrix D is used to finally store $\hat{D}^{n}$ . The matrix inversions required in (8.18) are performed by a separate subroutine, INVERT. Subroutine TANGVP is now presented and described. ```csv SUBROUTINE TANGVP(LPROP,STRES,PROPS,TIMEX,DTIME,NTSTRE,NTYPE,MMATS,NCRIT,DMATX) TGVP 1 C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C D D E N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N C I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S 1 T G V P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P M S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S II N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I No S I No S I No S I No S I No S I No S I No S I No S I No S I No S I No S I No S I No S I No S I No S I No S I No S 1 T G V P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P M S I N S 1 T G V P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P M S I N S I N S 1 T G V P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P M S I N S I N S I N S 1 T G V P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P M S I N S I N S I N S I N S 1 T G V P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P M S I N S I N S I N S I N S I N S 1 T G V P P P P P P P P P P P P P P P P P P P P P P P P P P P P P M S I N S I N S I N S I N S I N S I N S 1 T G V P P P P P P P P P P P P P P P P P P P P P P P P P P M S I N S I N S I N S I N S I N S I N S I N S 1 T G V P P P P P P P P P P P P P P P P P P P P P P P M S I N S I N S I N S I N S I N S I N S I N S I N S 1 T G V P P P P P P P P P P P P P P P P P P P P M S I N S I N S I N S I N S I N S I N S I N S I N S I N S 1 T G V P P P P P P P P P P P P P P P P P M S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S 1 T G V P P P P P P P P P P P P P P M S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S 1 T G V P P P P P P P P P P P M S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S 1 T G V P P P P P P P P M S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S 1 T G V P P P P P M S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S 1 T G V P P M S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S 1 T G W P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P No P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P C P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P T P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P F N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N M S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N P N P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P M P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I M S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N N P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P S P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P M N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N S I N s I N s I N s I N s I N s I N s I N s I N s I N s I N s I N s I N s I N s I N s I N s I N s I N s I No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No N No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P P No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No № No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No 0 No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No Yes No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No NO No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No S No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No # ``` ```csv 10 CMULT=FNORM**DELTA TGVP 24 GRADP=DELTA*(FNORM**(DELTA-1.0))/FDATM TGVP 25 20 FACT1=GAMMA*ROOT3*CMULT/(2.0*STEFF) TGVP 26 FACT2=GAMMA*(0.75*GRADP/VARJ2-3.0*CMULT/(4.0*ROOT3*STEFF*VARJ2)) TGVP 27 C TGVP 28 C*** MATRICES M1 AND M2 FOR A VON MISES MATERIAL TGVP 29 C TGVP 30 TRIX1(1,1)=0.666666667 TGVP 31 TRIX1(1,2)=-0.333333333 TGVP 32 TRIX1(1,3)=0.0 TGVP 33 TRIX1(2,2)=0.666666667 TGVP 34 TRIX1(2,3)=0.0 TGVP 35 TRIX1(3,3)=2.0 TGVP 36 IF(NTYPE.NE.3) GO TO 30 TGVP 37 TRIX1(1,4)=-0.333333333 TGVP 38 TRIX1(2,4)=-0.333333333 TGVP 39 TRIX1(3,4)=0.0 TGVP 40 TRIX1(4,4)=0.666666667 TGVP 41 30 TRIX2(1,1)=DEVIA(1)*DEVIA(1) TGVP 42 TRIX2(1,2)=DEVIA(1)*DEVIA(2) TGVP 43 TRIX2(1,3)=2.0*DEVIA(1)*DEVIA(3) TGVP 44 TRIX2(2,2)=DEVIA(2)*DEVIA(2) TGVP 45 TRIX2(2,3)=2.0*DEVIA(2)*DEVIA(3) TGVP 46 TRIX2(3,3)=4.0*DEVIA(3)*DEVIA(3) TGVP 47 IF(NTYPE.NE.3) GO TO 40 TGVP 48 TRIX2(1,4)=DEVIA(1)*DEVIA(4) TGVP 49 TRIX2(2,4)=DEVIA(2)*DEVIA(4) TGVP 50 TRIX2(3,4)=2.0*DEVIA(3)*DEVIA(4) TGVP 51 TRIX2(4,4)=DEVIA(4)*DEVIA(4) TGVP 52 40 DO 50 ISTRE=1,NSTRE TGVP 53 DO 50 JSTRE=1,NSTRE TGVP 54 TRIX1(JSTRE,ISTRE)=TRIX1(ISTRE,JSTRE) TGVP 55 50 TRIX2(JSTRE,ISTRE)=TRIX2(ISTRE,JSTRE) TGVP 56 DO 60 ISTRE=1,NSTRE TGVP 57 DO 60 JSTRE=1,NSTRE TGVP 58 60 CMATX(ISTRE,JSTRE)=TIMEX*DTIME*(FACT1*TRIX1(ISTRE,JSTRE) TGVP 59 .+FACT2*TRIX2(ISTRE,JSTRE)) TGVP 60 CALL INVERT(DMATX,TMATX,NSTRE) TGVP 61 DO 70 ISTRE=1,NSTRE TGVP 62 DO 70 JSTRE=1,NSTRE TGVP 63 70 TMATX(ISTRE,JSTRE)=TMATX(ISTRE,JSTRE)+CMATX(ISTRE,JSTRE) TGVP 64 CALL INVERT(TMATX,DMATX,NSTRE) TGVP 65 RETURN TGVP 66 END TGVP 67 ``` TGVP 10 Evaluate $\sqrt{(3)}$ . TGVP 11 Identify the yield stress F as FDATM. TGVP 12 Identify the fluidity parameter $\gamma$ as GAMMA. TGVP 13 For flow law (8.8) store the index $M$ as DELTA, or for flow law (8.9) store the index $N$ as DELTA. TGVP 14 Identify the type of flow function to be used as governed by material property PROPS(LPROP,10) supplied as input: NFLOW = 0 - Flow function (8.8) to be used, NFLOW = 1 - Flow function (8.9) to be used. TGVP 15–16 Call subroutine INVAR to evaluate the effective stress components, the effective stress level and $J_{2}'$ . TGVP 17-18 Evaluate $F-F_{0}/F_{0}$ as FNORM. TGVP 21-22 Evaluate $\Phi$ and $d\Phi / dF$ for flow function (8.8). TGVP 24–25 Evaluate $\Phi$ and $d\Phi/dF$ for flow function (8.9). TGVP 26–27 Compute $p_{1}$ and $p_{2}$ according to (8.43). TGVP 31–41 Evaluate $M_{1}$ according to (8.44) taking the full $4 \times 4$ matrix for axisymmetric situations. TGVP 42–52 Evaluate $M_{2}$ according to (8.45) taking the full $4 \times 4$ matrix for axisymmetric situations. TGVP 53–56 Complete the lower triangle of $M_{1}$ and $M_{2}$ by symmetry. TGVP 57–60 Compute matrix $C^{n}$ according to (8.14) and (8.42). TGVP 61 Call subroutine INVERT to evaluate $D^{-1}$ and store as TMATX. TGVP 62-64 Compute $D^{-1} + C^n$ TGVP 65 Call subroutine INVERT to evaluate $(D^{-1}+C^{n})^{-1}$ and store as DMATX. # 8.7.3 Subroutine INVERT The function of this subroutine is to determine the inverse of any arbitrary square matrix. In particular, the subroutine accepts a matrix AMATX with dimensions NARAY×NARAY and evaluates the inverse as BMATX. The procedure employed is the standard method of reduction in which starting from the original matrix AMATX and assuming an identity matrix for BMATX, an elimination process is followed until AMATX is reduced to an identity form. Then at this stage BMATX is the inverse of AMATX. The subroutine is presented below without further comment. ```txt SUBROUTINE INVERT(AMATX,BMATX,NARAY) INVT 1 C******************************* C INVT 2 C INVT 3 C*** TO PROVIDE THE INVERSE OF AMATX AS BMATX INVT 4 C INVT 5 C******************************* INVT 6 DIMENSION AMATX(4,4),BMATX(4,4) INVT 7 DO 10 IARAY=1,NARAY INVT 8 DO 10 JARAY=1,NARAY INVT 9 BMATX(IARAY,JARAY)=0.0 INVT 10 10 IF(IARAY.EQ.JARAY) BMATX(IARAY,JARAY)=1.0 INVT 11 DO 20 IARAY=1,NARAY INVT 12 DENOM=AMATX(IARAY,IARAY) INVT 13 DO 30 JARAY=1,NARAY INVT 14 AMATX(IARAY,JARAY)=AMATX(IARAY,JARAY)/DENOM INVT 15 30 BMATX(IARAY,JARAY)=BMATX(IARAY,JARAY)/DENOM INVT 16 KARAY=IARAY+1 INVT 17 IF(KARAY.GT.NARAY) GO TO 40 INVT 18 DO 20 JARAY=KARAY,NARAY INVT 19 CONST=AMATX(JARAY,IARAY) INVT 20 DO 20 LARAY=IARAY,NARAY INVT 21 AMATX(JARAY,LARAY)=AMATX(JARAY,LARAY)-AMATX(IARAY,LARAY) INVT 22 .*CONST INVT 23 20 BMATX(JARAY,LARAY)=BMATX(JARAY,LARAY)-BMATX(IARAY,LARAY) INVT 24 .*CONST INVT 25 40 CONTINUE INVT 26 DO 50 IARAY=2,NARAY INVT 27 KARAY=NARAY-IARAY+2 INVT 28 ``` LIMIT=KARAY-1 INVT 29 DO 50 LARAY=1,LIMIT INVT 30 CONST=AMATX(LARAY,KARAY) INVT 31 DO 50 JARAY=1,KARAY INVT 32 AMATX(LARAY,JARAY)=AMATX(LARAY,JARAY)-AMATX(KARAY,JARAY) INVT 33 .*CONST INVT 34 50 BMATX(LARAY,JARAY)=BMATX(LARAY,JARAY)-BMATX(KARAY,JARAY) INVT 35 .*CONST INVT 36 RETURN INVT 37 END INVT 38 # 8.8 Subroutine STEPVP for the evaluation of end of time step quantities and equilibrium correction terms With reference to Fig. 8.1, this subroutine evaluates quantities, such as stresses and viscoplastic strains, at the end of the current timestep and also calculates the loading to be applied during the next timestep. The subroutine is structured to perform the following operations sequentially: (a) All quantities at the end of timestep $n$ are calculated as $( )^{n+1}$ . (b) Subroutine INVAR, YIELDF and FLOWVP are called to evaluate the current viscoplastic flow rate, $\dot{\epsilon}_{vp}^{n+1}$ . (c) The maximum permissible interval length, $\Delta t_{n + 1}$ , for the next timestep as governed by (8.29) and (8.32) is calculated. (d) The residual forces, $\psi^{n+1}$ , are evaluated and the loads, $\Delta V^{n+1}$ , for the next timestep then calculated. In the program presented we restrict ourselves to loads applied in discrete increments. An increment of load is applied and the time stepping process is followed until either steady state conditions are achieved, or a specified number of timesteps is reached. Then a further increment of load is applied and the process repeated. Thus in (8.23), $\Delta f^{n} = 0$ for all stages other than the first timestep of a particular load increment. The attainment of steady state conditions can be monitored by accumulating some measure of the viscoplastic strain rate for all Gauss points in the structure. At steady state this quantity will become zero. The degree of total viscoplastic flow at any point is best monitored by evaluating the total effective viscoplastic strain rate at all Gauss points according to $$ \bar {\dot {\epsilon}} _ {v p} = (\sqrt {\frac {2}{3}}) \{(\dot {\epsilon} _ {i j}) _ {v p} (\dot {\epsilon} _ {i j}) _ {v p} \} ^ {1 / 2}. \tag {8.47} $$ Subroutine STEPVP is now presented and described. SUBROUTINE STEPVP(ASDIS,COORD,ELOAD,ISTEP,LNODS,LPROP,TIMEX, SPVP 1 . MATNO,MELEM,MMATS,MPOIN,MTOTG,TAUFT,DTIME, SPVP 2 . MTOTV,NDOFN,NELEM,NEVAB,NGAUS,NNODE,NSTR1, SPVP 3 . NTYPE,POSGP,PROPS,NSTRE,NCRIT,STRSG,WEIGP, SPVP 4 . TDISP,VISTN,VIVEL,TLOAD,FTIME,DTINT,IINCS) SPVP 5 C*************** SPVP 6 C C**** EVALUATES QUANTITIES AT END OF TIME STEP AND CALCULATES THE SPVP 7 C RESIDUAL FORCES AND PSEUDO FORCES FOR THE NEXT STEP SPVP 8 C C*************** SPVP 9 C C*************** SPVP 10 C ```asm DIMENSION ASDIS(MTOTV), AVECT(4), CARTD(2,9), COORD(MPOIN,2), SPVP 12 . DEVIA(4), ELCOD(2,9), ELDIS(2,9), ELOAD(MELEM,18), SPVP 13 . LNODS(MELEM,9), POSGP(4), PROPS(MMATS,10), STRAN(4), SPVP 14 . STRES(4), STRSG(4, MTOTG), VIVEL(5, MTOTG), SPVP 15 . VISTN(4, MTOTG), WEIGP(4), DMATX(4,4), TLDIS(2,9), SPVP 16 . DERIV(2,9), SHAPE(9), GPCOD(2,9), TDISP(MTOTV), SPVP 17 . MATNO(MELEM), DJACM(2,2), BMATX(4,18), DESTN(4), SPVP 18 . TLOAD(MELEM,18), SVECT(4) SPVP 19 TWOPI=6.283185308 SPVP 20 DO 10 IELEM=1, NELEM SPVP 21 DO 10 IEVAB=1, NEVAB SPVP 22 10 ELOAD(IELEM,IEVAB)=0.0 SPVP 23 KGAUS=0 SPVP 24 DNEXT=FTIME*DTIME SPVP 25 DO 80 IELEM=1, NELEM SPVP 26 LPROP=MATNO(IELEM) SPVP 27 C C*** STORE COORDINATES AND INCREMENTAL DISPLACEMENTS OF THE SPVP 29 C ELEMENT NODAL POINTS SPVP 30 C DO 20 INODE=1, NNODE SPVP 31 LNODE=IABS(LNODS(IELEM,INODE)) SPVP 32 NPOSN=(LNODE-1)*NDOFN SPVP 33 DO 20 IDOFN=1, NDOFN SPVP 34 NPOSN=NPOSN+1 SPVP 35 ELCOD(IDOFN,INODE)=COORD(LNODE,IDOFN) SPVP 36 TLDIS(IDOFN,INODE)=TDISP(NPOSN) SPVP 37 20 ELDIS(IDOFN,INODE)=ASDIS(NPOSN) SPVP 38 THICK=PROPS(LPROP,3) SPVP 39 KGASP=0 SPVP 40 DO 70 IGAUS=1, NGAUS SPVP 41 DO 70 JGAUS=1, NGAUS SPVP 42 EXISP=POSGP(IGAUS) SPVP 43 ETASP=POSGP(JGAUS) SPVP 44 KGAUS=KGAUS+1 SPVP 45 KGASP=KGASP+1 SPVP 46 CALL MODPS(DMATX, LPROP, MMATS, NTYPE, PROPS) SPVP 47 DO 30 ISTR1=1, NSTR1 SPVP 48 30 STRES(ISTR1)=STRSG(ISTR1, KGAUS) SPVP 49 CALL INVAR(DEVIA, LPROP, MMATS, NCRIT, PROPS, SINT3, STEFF, STRES, THETA, SPVP 50 . VARJ2, YIELD) SPVP 51 IF(TIMEX.GT.0.0) CALL TANGVP(LPROP, STRES, PROPS, TIMEX, DTIME, SPVP 52 . NSTRE, NTYPE, MMATS, NCRIT, DMATX) SPVP 53 CALL SFR2(DERIV, ETASP, EXISP, NNODE, SHAPE) SPVP 54 CALL JACOB2(CARTD, DERIV, DJACB, ELCOD, GPCOD, IELEM, KGASP, NNODE, SHAPE) SPVP 55 DVOLU=DJACB*WEIGP(IGAUS)*WEIGP(JGAUS)- SPVP 56 IF(NTYPE.EQ.3) DVOLU=DVOLU*TWOPI*GPCOD(1, KGASP) SPVP 57 IF(THICK.NE.0.0) DVOLU=DVOLU*THICK SPVP 58 CALL STRESS(DMATX, LPROP, NTYPE, PROPS, NDOFN, CARTD, ELDIS, SHAPE, SPVP 59 . GPCOD, NSTRE, VIVEL, DTIME, STRSG, KGASP, MTOTG, MMATS, SPVP 60 . SVECT, NNODE, NSTR1, KGAUS, TLDIS) SPVP 61 DO 60 ISTR1=1, NSTR1 SPVP 62 DESTN(ISTR1)=VIVEL(ISTR1, KGAUS)*DTIME SPVP 63 60 VISTN(ISTR1, KGAUS)=VISTN(ISTR1, KGAUS)+DESTN(ISTR1) SPVP 64 DEBAR=SORT((2.0*(DESTN(1)*DESTN(1)+DESTN(2)*DESTN(2)+DESTN(4)* SPVP 65 . DESTN(4))+DESTN(3)*DESTN(3))/3.0) SPVP 66 DO 65 ISTR1=1, NSTR1 SPVP 67 65 STRES(ISTR1)=STRSG(ISTR1, KGAUS) SPVP 68 VIVEL(5, KGAUS)=VIVEL(5, KGAUS)+DEBAR SPVP 69 CALL INVAR(DEVIA, LPROP, MMATS, NCRIT, PROPS, SINT3, STEFF, STRES, THETA, SPVP 70 . VARJ2, YIELD) SPVP 71 CALL YIELDF(AVECT, DEVIA, LPROP, MMATS, NCRIT, NSTR1, SPVP 72 . PROPS, SINT3, STEFF, THETA, VARJ2) SPVP 73 CALL FLOWVP(AVECT, PROPS, LPROP, STEFF, NSTR1, MTOTG, VIVEL, SPVP 74 . YIELD, KGAUS, MMATS, NCRIT, FNORM, ALLOW) SPVP 75 SPVP 76 ```
