EXAMPLE 6.18: Establish the matrices $\mathbf{b}_{L0}, \mathbf{b}_{L1}$ , and $\mathbf{b}_{NL}$ corresponding to the TL formulation for the two-dimensional plane strain element shown in Fig. E6.18.


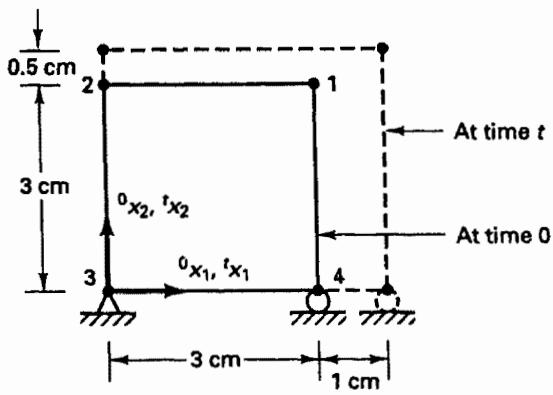

Figure E6.18 Four-node plane strain element in large displacement/large strain conditions In this case we can directly use the information given in Table 6.5 with $$ ^ \prime u _ {1} ^ {1} = 1; \quad^ {\prime} u _ {2} ^ {1} = 0. 5 $$ $$ \begin{array}{l} ^ {\prime} u _ {1} ^ {2} = 0; \quad^ {\prime} u _ {2} ^ {2} = 0. 5 \\ ^ {\prime} u _ {1} ^ {3} = 0; \quad^ {\prime} u _ {2} ^ {3} = 0 \end{array} \quad^ {0} \mathbf {J} = \left[ \begin{array}{c c} \frac {3}{2} & 0 \\ 0 & \frac {3}{2} \end{array} \right] $$ $$ ^ \prime u _ {1} ^ {4} = 1; \quad^ {\prime} u _ {2} ^ {4} = 0 $$ The interpolation functions of the four-node element are given in Fig. 5.4 (and the required derivatives have been given in Example 5.5), so that we obtain $$ \mathbf {0} \mathbf {B} _ {L 0} = $$ $$ \frac {1}{6} \left[ \begin{array}{c c c c c c c c c} (1 + s) & 0 & - (1 + s) & 0 & - (1 - s) & 0 & (1 - s) & 0 \\ 0 & (1 + r) & 0 & (1 - r) & 0 & - (1 - r) & 0 & - (1 + r) \\ (1 + r) & (1 + s) & (1 - r) & - (1 + s) & - (1 - r) & - (1 - s) & - (1 + r) & (1 - s) \end{array} \right] $$ To evaluate $_{0}^{t}B_{L1}$ we also need the $l_{ij}$ values, where $$ l _ {1 1} = \sum_ {k = 1} ^ {4} _ {0} h _ {k, 1} ^ {\prime} u _ {1} ^ {k} = \frac {2}{3} \left\{h _ {1, r} ^ {\prime} u _ {1} ^ {1} + h _ {4, r} ^ {\prime} u _ {1} ^ {4} \right\} = \frac {1}{3} $$ $$ l _ {1 2} = \sum_ {k = 1} ^ {4} _ {0} h _ {k, 2} ^ {\prime} u _ {1} ^ {k} = \frac {2}{3} \left\{h _ {1, s} ^ {\prime} u _ {1} ^ {1} + h _ {4, s} ^ {\prime} u _ {1} ^ {4} \right\} = 0 $$ $$ l _ {2 1} = \sum_ {k = 1} ^ {4} _ {0} h _ {k, 1} ^ {\prime} u _ {2} ^ {k} = \frac {2}{3} \{h _ {1, r} ^ {\prime} u _ {2} ^ {1} + h _ {2, r} ^ {\prime} u _ {2} ^ {2} \} = 0 $$ $$ l _ {2 2} = \sum_ {k = 1} ^ {4} _ {0} h _ {k, 2} ^ {\prime} u _ {2} ^ {k} = \frac {2}{3} \left\{h _ {1, s} ^ {\prime} u _ {2} ^ {1} + h _ {2, s} ^ {\prime} u _ {2} ^ {2} \right\} = \frac {1}{6} $$ Hence, we have $$ \delta \mathbf {B} _ {L 1} = $$ $$ \frac {1}{3 6} \left[ \begin{array}{c c c c c c c c c} 2 (1 + s) & 0 & - 2 (1 + s) & 0 & - 2 (1 - s) & 0 & 2 (1 - s) & 0 \\ 0 & (1 + r) & 0 & (1 - r) & 0 & - (1 - r) & 0 & - (1 + r) \\ 2 (1 + r) & (1 + s) & 2 (1 - r) & - (1 + s) & - 2 (1 - r) & - (1 - s) & - 2 (1 + r) & (1 - s) \end{array} \right] $$ The nonlinear strain-displacement matrix can also directly be constructed using the derivatives of the interpolation functions and the Jacobian matrix: $$ _ {0} ^ {t} \mathbf {B} _ {N L} = $$ $$ \frac {1}{6} \left[ \begin{array}{c c c c c c c c} (1 + s) & 0 & - (1 + s) & 0 & - (1 - s) & 0 & (1 - s) & 0 \\ (1 + r) & 0 & (1 - r) & 0 & - (1 - r) & 0 & - (1 + r) & 0 \\ 0 & (1 + s) & 0 & - (1 + s) & 0 & - (1 - s) & 0 & (1 - s) \\ 0 & (1 + r) & 0 & (1 - r) & 0 & - (1 - r) & 0 & - (1 + r) \end{array} \right] $$ # 6.3.5 Three-Dimensional Solid Elements The evaluation of the matrices required in three-dimensional isoparametric finite element analysis is accomplished using the same procedures as in two-dimensional analysis. Thus, referring to Section 6.3.4, we simply note that for a typical element we now use the coordinate and displacement interpolations, $$ { } ^ { 0 } x _ { i } = \sum _ { k = 1 } ^ { N } h _ { k } { } ^ { 0 } x _ { i } ^ { k } ; \quad \quad { } ^ { t } x _ { i } = \sum _ { k = 1 } ^ { N } h _ { k } { } ^ { t } x _ { i } ^ { k } ; \quad \quad i = 1 , 2 , 3 \tag {6.127} $$ $$ { } ^ { \prime } u _ { i } = \sum _ { k = 1 } ^ { N } h _ { k } { } ^ { \prime } u _ { i } ^ { k } ; \qquad u _ { i } = \sum _ { k = 1 } ^ { N } h _ { k } u _ { i } ^ { k } ; \qquad i = 1 , 2 , 3 \tag {6.128} $$ where the element interpolation functions $h_{k}$ have been given in Fig. 5.5. Using (6.127) and (6.128) in the same way as in two-dimensional analysis, we can develop the relevant element matrices used in the TL and UL formulations for three-dimensional analysis (see Table 6.6). TABLE 6.6 Matrices used in the three-dimensional element formulation A. Total Lagrangian formulation 1. Incremental strains $$ _ 0 \epsilon_ {i j} = \frac {1}{2} (_ {0} u _ {i, j} + _ {0} u _ {j, i}) + \frac {1}{2} (_ {0} ^ {\prime} u u _ {k, j} + _ {0} u ^ {\prime} u _ {k, j}) + \frac {1}{2} (_ {0} u u _ {k, j}) \quad i = 1, 2, 3; j = 1, 2, 3; k = 1, 2, 3 $$ $$ \text { where } _ {0} u _ {i, j} = \frac {\partial u _ {i}}{\partial^ {0} x _ {j}} $$ 2. Linear strain-displacement transformation matrix Using $_{0}e = _{0}^{t}B_{L}\hat{u}$ where $_0\mathbf{e}^T = [0e_{11} \quad_0e_{22} \quad_0e_{33} \quad 2_0e_{12} \quad 2_0e_{23} \quad 2_0e_{31}]$ ; $$ \hat {\mathbf {u}} ^ {T} = \left[ u _ {1} ^ {1} u _ {2} ^ {1} u _ {3} ^ {1} u _ {1} ^ {2} u _ {2} ^ {2} u _ {3} ^ {2} \dots u _ {1} ^ {N} u _ {2} ^ {N} u _ {3} ^ {N} \right] $$ $$ \mathbf {b} _ {L} = \mathbf {b} _ {L 0} + \mathbf {b} _ {L 1} $$ $$ { } _ { 0 } ^ { \prime } \mathbf { B } _ { L 0 } = \left[ \begin{array} { c c c c c c } _ { 0 } h _ { 1 , 1 } & 0 & 0 & _ { 0 } h _ { 2 , 1 } & \cdots & 0 \\ 0 & _ { 0 } h _ { 1 , 2 } & 0 & 0 & \cdots & 0 \\ 0 & 0 & _ { 0 } h _ { 1 , 3 } & 0 & \cdots & _ { 0 } h _ { N , 3 } \\ _ { 0 } h _ { 1 , 2 } & _ { 0 } h _ { 1 , 1 } & 0 & _ { 0 } h _ { 2 , 2 } & \cdots & 0 \\ 0 & _ { 0 } h _ { 1 , 3 } & _ { 0 } h _ { 1 , 2 } & 0 & \cdots & _ { 0 } h _ { N , 2 } \\ _ { 0 } h _ { 1 , 3 } & 0 & _ { 0 } h _ { 1 , 1 } & _ { 0 } h _ { 2 , 3 } & \cdots & _ { 0 } h _ { N , 1 } \end{array} \right] $$ $$ \text { where } _ {0} h _ {k, j} = \frac {\partial h _ {k}}{\partial^ {0} x _ {j}}; \quad u _ {j} ^ {k} = ^ {t + \Delta t} u _ {j} ^ {k} - ^ {t} u _ {j} ^ {k} $$ TABLE 6.6 (cont.)

$_0\mathbf{B}_{L1} = \left[ \begin{array}{cccccc} l_{110}h_{1,1} & l_{210}h_{1,1} & l_{310}h_{1,1} & l_{110}h_{2,1} & \cdots & l_{310}h_{N,1} \\ l_{120}h_{1,2} & l_{220}h_{1,2} & l_{320}h_{1,2} & l_{120}h_{2,2} & \cdots & l_{320}h_{N,2} \\ l_{130}h_{1,3} & l_{230}h_{1,3} & l_{330}h_{1,3} & l_{130}h_{2,3} & \cdots & l_{330}h_{N,3} \\ (l_{110}h_{1,2} + l_{120}h_{1,1}) & (l_{210}h_{1,2} + l_{220}h_{1,1}) & (l_{310}h_{1,2} + l_{320}h_{1,1}) & (l_{110}h_{2,2} + l_{120}h_{2,1}) & \cdots & (l_{310}h_{N,2} + l_{320}h_{N,1}) \\ (l_{120}h_{1,3} + l_{130}h_{1,2}) & (l_{220}h_{1,3} + l_{230}h_{1,2}) & (l_{320}h_{1,3} + l_{330}h_{1,2}) & (l_{120}h_{2,3} + l_{130}h_{2,2}) & \cdots & (l_{320}h_{N,3} + l_{330}h_{N,2}) \\ (l_{110}h_{1,3} + l_{130}h_{1,1}) & (l_{210}h_{1,3} + l_{230}h_{1,1}) & (l_{310}h_{1,3} + l_{330}h_{1,1}) & (l_{110}h_{2,3} + l_{130}h_{2,1}) & \cdots & (l_{310}h_{N,3} + l_{330}h_{N,1}) \end{array} \right]$

where $l_{ij} = \sum_{k=1}^{N} 0 h_{k,j} u_i^k$ 3. Nonlinear strain-displacement transformation matrix $$ { } _ { 0 } ^ { t } \mathbf { B } _ { N L } = \left[ \begin{array} { c c c } { } _ { 0 } ^ { t } \bar { \mathbf { B } } _ { N L } & \tilde { \mathbf { 0 } } & \tilde { \mathbf { 0 } } \\ \tilde { \mathbf { 0 } } & { } _ { 0 } ^ { t } \tilde { \mathbf { B } } _ { N L } & \tilde { \mathbf { 0 } } \\ \tilde { \mathbf { 0 } } & \tilde { \mathbf { 0 } } & { } _ { 0 } ^ { t } \tilde { \mathbf { B } } _ { N L } \end{array} \right] ; \quad \tilde { \mathbf { 0 } } = \left[ \begin{array} { c } 0 \\ 0 \\ 0 \end{array} \right] $$ where $\mathfrak{h}_{0}\tilde{\mathbf{B}}_{NL} = \begin{bmatrix} 0 & 0 & 0 & h_{2,1} & \cdots & 0 & h_{N,1}\\ 0 & 0 & 0 & h_{2,2} & \cdots & 0 & h_{N,2}\\ 0 & 0 & 0 & h_{2,3} & \cdots & 0 & h_{N,3} \end{bmatrix}$ 4. Second Piola-Kirchhoff stress matrix and vector $$ { } _ { 6 } \mathbf { S } = \left[ \begin{array} { c c c } { } _ { 6 } \tilde { \mathbf { S } } & \overline { { \mathbf { 0 } } } & \overline { { \mathbf { 0 } } } \\ \overline { { \mathbf { 0 } } } & { } _ { 6 } \tilde { \mathbf { S } } & \overline { { \mathbf { 0 } } } \\ \overline { { \mathbf { 0 } } } & \overline { { \mathbf { 0 } } } & { } _ { 6 } \tilde { \mathbf { S } } \end{array} \right] ; \quad \overline { { \mathbf { 0 } } } = \left[ \begin{array} { c c c } 0 & 0 & 0 \\ 0 & 0 & 0 \\ 0 & 0 & 0 \end{array} \right] $$ $$ \hat {\mathbf {S}} ^ {T} = \left[ \begin{array}{l l l l l l} \hat {\mathbf {0}} S _ {1 1} & \hat {\mathbf {0}} S _ {2 2} & \hat {\mathbf {0}} S _ {3 3} & \hat {\mathbf {0}} S _ {1 2} & \hat {\mathbf {0}} S _ {2 3} & \hat {\mathbf {0}} S _ {3 1} \end{array} \right] $$ where $\delta\tilde{S}=\left[\begin{matrix}\delta S_{11}&\delta S_{12}&\delta S_{13}\\ \delta S_{21}&\delta S_{22}&\delta S_{23}\\ \delta S_{31}&\delta S_{32}&\delta S_{33}\end{matrix}\right]$ B. Updated Lagrangian formulation 1. Incremental strains $$ _ {i} \epsilon_ {i j} = \frac {1}{2} (_ {i} u _ {i, j} + _ {i} u _ {j, i}) + \frac {1}{2} (_ {i} u u _ {k, j}) \quad i = 1, 2, 3; j = 1, 2, 3; k = 1, 2, 3 $$ where $_{t}u_{i,j} = \frac{\partial u_{i}}{\partial^t x_j}$ 2. Linear strain-displacement transformation matrix Using, $\mathbf{e} = ;\mathbf{B}_L\hat{\mathbf{u}}$ where $\mathbf{e}^T = \left[ \begin{array}{llllll} e_{11} & e_{22} & e_{33} & 2_i e_{12} & 2_i e_{23} & 2_i e_{31} \end{array} \right]$ $$ \hat {\mathbf {u}} ^ {T} = \left[ u _ {1} ^ {1} \quad u _ {2} ^ {1} \quad u _ {3} ^ {1} \quad u _ {1} ^ {2} \quad u _ {2} ^ {2} \quad u _ {3} ^ {2} \quad \dots \quad u _ {1} ^ {N} \quad u _ {2} ^ {N} \quad u _ {3} ^ {N} \right] $$ $$ \mathbf {B} _ {L} = \left[ \begin{array}{c c c c c c} h _ {1, 1} & 0 & 0 & h _ {2, 1} & \dots & 0 \\ 0 & h _ {1, 2} & 0 & 0 & \dots & 0 \\ 0 & 0 & h _ {1, 3} & 0 & \dots & h _ {N, 3} \\ h _ {1, 2} & h _ {1, 1} & 0 & h _ {2, 2} & \dots & 0 \\ 0 & h _ {1, 3} & h _ {1, 2} & 0 & \dots & h _ {N, 2} \\ h _ {1, 3} & 0 & h _ {1, 1} & h _ {2, 3} & \dots & h _ {N, 1} \end{array} \right] $$ where $h_{k,j} = \frac{\partial h_k}{\partial^t x_j}$ ; $u_j^k = ^{t + \Delta t} u_j^k - ^t u_j^k$ ; $N =$ number of nodes 3. Nonlinear strain-displacement transformation matrix $$ { } ^ { \prime } \mathbf { B } _ { N L } = \left[ \begin{array} { c c c } { { } ^ { \prime } \tilde { \mathbf { B } } _ { N L } } & { { } \tilde { \mathbf { 0 } } } & { { } \tilde { \mathbf { 0 } } } \\ { { } \tilde { \mathbf { 0 } } } & { { } ^ { \prime } \tilde { \mathbf { B } } _ { N L } } & { { } \tilde { \mathbf { 0 } } } \\ { { } \tilde { \mathbf { 0 } } } & { { } \tilde { \mathbf { 0 } } } & { { } ^ { \prime } \tilde { \mathbf { B } } _ { N L } } \end{array} \right] ; \qquad \tilde { \mathbf { 0 } } = \left[ \begin{array} { c } 0 \\ 0 \\ 0 \end{array} \right] $$ TABLE 6.6 (cont.)

where

$\tilde{\mathbf{B}}_{NL} = \begin{bmatrix} h_{1,1} & 0 & 0 & h_{2,1} & \cdots & h_{N,1} \\ h_{1,2} & 0 & 0 & h_{2,2} & \cdots & h_{N,2} \\ h_{1,3} & 0 & 0 & h_{2,3} & \cdots & h_{N,3} \end{bmatrix}$

4. Cauchy stress matrix and stress vector $$ ^ {\prime} \boldsymbol {\tau} = \left[ \begin{array}{c c c} ^ {\prime} \widetilde {\boldsymbol {\tau}} & \overline {{\boldsymbol {0}}} & \overline {{\boldsymbol {0}}} \\ \overline {{\boldsymbol {0}}} & ^ {\prime} \widetilde {\boldsymbol {\tau}} & \overline {{\boldsymbol {0}}} \\ \overline {{\boldsymbol {0}}} & \overline {{\boldsymbol {0}}} & ^ {\prime} \widetilde {\boldsymbol {\tau}} \end{array} \right]; \quad^ {\prime} \hat {\boldsymbol {\tau}} = \left[ \begin{array}{c} ^ {\prime} \boldsymbol {\tau} _ {1 1} \\ ^ {\prime} \boldsymbol {\tau} _ {2 2} \\ ^ {\prime} \boldsymbol {\tau} _ {3 3} \\ ^ {\prime} \boldsymbol {\tau} _ {1 2} \\ ^ {\prime} \boldsymbol {\tau} _ {2 3} \\ ^ {\prime} \boldsymbol {\tau} _ {3 1} \end{array} \right] \quad \overline {{\boldsymbol {0}}} = \left[ \begin{array}{c c c} 0 & 0 & 0 \\ 0 & 0 & 0 \\ 0 & 0 & 0 \end{array} \right] $$ where $\tilde{\tau}=\begin{bmatrix}^{\prime}\tau_{11}&^{\prime}\tau_{12}&^{\prime}\tau_{13}\\^{\prime}\tau_{21}&^{\prime}\tau_{22}&^{\prime}\tau_{23}\\^{\prime}\tau_{31}&^{\prime}\tau_{32}&^{\prime}\tau_{33}\end{bmatrix}$ # 6.3.6 Exercises 6.31. Consider the problem shown and evaluate the following quantities in terms of the given data: $_{0}e_{ij}, _{0}\eta_{ij}, _{0}u_{k,i}, _{0}u_{k,j}, _{0}x_{i,k}$ .

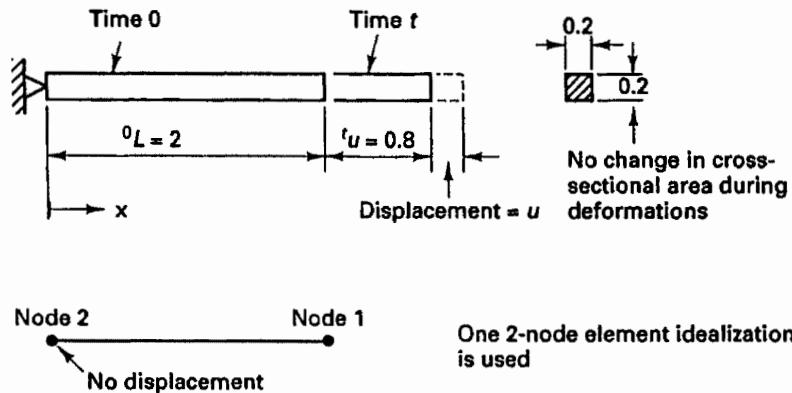

6.32. Consider the truss element shown. The truss has a cross-sectional area $A$ and a Young's modulus $E$ . We assume small strain conditions, i.e., $\Delta / ^0 L \ll 1$ .

(a) Evaluate the total stiffness matrix as a function of $\Delta$ and plot the linear strain stiffness matrix element $\mathbf{\delta}_{0}\mathbf{K}_{L}$ and nonlinear strain stiffness matrix element $\mathbf{\delta}_{0}\mathbf{K}_{NL}$ as a function of $\Delta$ . (b) Let R be the external load applied to obtain the displacement $\Delta$ . Plot the force R as a function of $\Delta$ . 6.33. Consider the snap-action toggle shown in its initial configuration. Assume small strain conditions and that each element has a cross-sectional area $A$ and Young's modulus $E$ . (a) For each element, calculate the linear and nonlinear strain stiffness matrices $\mathbf{t}_{0}\mathbf{K}_{L}$ and $\mathbf{t}_{0}\mathbf{K}_{NL}$ and the force vector $\mathbf{t}_{0}\mathbf{F}$ . (b) Calculate the linear and nonlinear strain stiffness matrices $\mathbf{^t}\mathbf{K}_L$ and $\mathbf{^t}\mathbf{K}_{NL}$ and the force vector $\mathbf{^t}\mathbf{F}$ of the complete toggle. Eliminate prescribed degrees of freedom. (c) Using your results from part (b), establish the force-deflection curve P versus $\Delta$ .

Initial stress-free configuration 6.34. Consider the three-element truss structure shown. Derive the tangent stiffness matrix $\delta \mathbf{K}$ and force vector $\delta \mathbf{F}$ corresponding to the configuration at time $t$ allowing for large displacements, large rotations, and large strains. Assume that the constitutive relationship is $\delta S_{11} = C\delta \epsilon_{11}$ , with $C$ given as some function of the strain.

6.35. Consider the evaluation of the stiffness matrix of the four-node element shown when calculated with the information given in Table 6.5. Let the two-dimensional element be loaded with a deformation-dependent pressure between nodes 1 and 2. Establish the terms that should be added to the stiffness matrix if the effect of the pressure is included in the linearization to obtain the exact tangent stiffness matrix. Consider plane stress, plane strain, and axisymmetric conditions.

6.36. The initial configuration and configuration at time t of a four-node plane strain element are as shown. The material law is linear, $\delta S_{ij} = \delta C_{ijrs} \delta \epsilon_{rs}$ , with $E = 20,000 \, N/m^{2}$ and $\nu = 0.3$ . (a) Calculate the nodal point forces required to hold the element in equilibrium at time t. Use an appropriate finite element formulation. (b) If the element now rotates rigidly from time $t$ to time $t + \Delta t$ by an angle of 90 degrees counterclockwise, calculate the new nodal point forces corresponding to the configuration at time $t + \Delta t$ .

scatter

| Point | x1 | x2 | Label | |-------|----|----|-------| | 1 | 4 | 2 | 1 | | 2 | 4 | 2 | 2 | | 3 | 4 | 2 | 3 | | 4 | 4 | 2 | 4 | | 5 | 6 | 2 | 1 | | 6 | 6 | 2 | 2 | | 7 | 6 | 2 | 3 | | 8 | 6 | 2 | 4 | | 9 | 6 | 2 | 3 | | 10 | 6 | 2 | 2 | | 11 | 6 | 2 | 1 | | 12 | 6 | 2 | 0 | | 13 | 6 | 2 | 1 | | 14 | 6 | 2 | 2 | | 15 | 6 | 2 | 3 | | 16 | 6 | 2 | 4 | | 17 | 6 | 2 | 5 | | 18 | 6 | 2 | 6 | | 19 | 6 | 2 | 7 | | 20 | 6 | 2 | 8 | | 21 | 6 | 2 | 9 | | 22 | 6 | 2 | 10 | | 23 | 6 | 2 | 11 | | 24 | 6 | 2 | 12 | | 25 | 6 | 2 | 13 | | 26 | 6 | 2 | 14 | | 27 | 6 | 2 | 15 | | 28 | 6 | 2 | 16 | | 29 | 6 | 2 | 17 | | 30 | 6 | 2 | 18 | | 31 | 6 | 2 | 19 | | 32 | 6 | 2 | 20 | | 33 | 6 | 2 | 21 | | 34 | 6 | 2 | 22 | | 35 | 6 | 2 | 23 | | 36 | 6 | 2 | 24 | | 37 | 6 | 2 | 25 | | 38 | 6 | 2 | 26 | | 39 | 6 | 2 | 27 | | 40 | 6 | 2 | 28 | | 41 | 6 | 2 | 29 | | 42 | 6 | 2 | 30 | | 43 | 6 | 2 | 31 | | 44 | 6 | 2 | 32 | | 45 | 6 | 2 | 33 | | 46 | 6 | 2 | 34 | | 47 | 6 | 2 | 35 | | 48 | 6 | 2 | 36 | | 49 | 6 | 2 | 37 | | 50 | 6 | 2 | 38 | | 51 | 6 | 2 | 39 | | 52 | 6 | 2 | 40 | | 53 | 6 | 2 | 41 | | 54 | 6 | 2 | 42 | | 55 | 6 | 2 | 43 | | 56 | 6 | 2 | 44 | | 57 | 6 | 2 | 45 | | 58 | 6 | 2 | 46 | | 59 | 6 | 2 | 47 | | 60 | 6 | 2 | 48 | | 61 | 6 | 2 | 49 | | 62 | 6 | 2 | 50 | | 63 | 6 | 2 | 51 | | 64 | 6 | 2 | 52 | | 65 | 6 | 2 | 53 | | 66 | 6 | 2 | 54 | | 67 | 6 | 2 | 55 | | 68 | 6 | 2 | 56 | | 69 | 6 | 2 | 57 | | 70 | 6 | 2 | 58 | | 71 | 6 | 2 | 59 | | 72 | 6 | 2 | 60 | | 73 | 6 | 2 | 61 | | 74 | 6 | 2 | 62 | | 75 | 6 | 2 | 63 | | 76 | 6 | 2 | 64 | | 77 | 6 | 2 | 65 | | 78 | 6 | 2 | 66 | | 79 | 6 | 2 | 67 | | 80 | 6 | 2 | 68 | | 81 | 6 | 2 | 69 | | 82 | 6 | 2 | 70 | | 83 | 6 | 2 | 71 | | 84 | 6 | 2 | 72 | | 85 | 6 | 2 | 73 | | 86 | 6 | 2 | 74 | | 87 | 6 | 2 | 75 | | 88 | 6 | 2 | 76 | | 89 | 6 | 2 | 77 | | 90 | 6 | 2 | 78 | | 91 | 6 | 2 | 79 | | 92 | 6 | 2 | 80 | | 93 | 6 | 2 | 81 | | 94 | 6 | 2 | 82 | | 95 | 6 | 2 | 83 | | 96 | 6 | 2 | 84 | | 97 | 6 | 2 | 85 | | 98 | 6 | 2 | 86 | | 99 | 6 | 2 | 87 | | 100 | 6 | 2 | 88 |

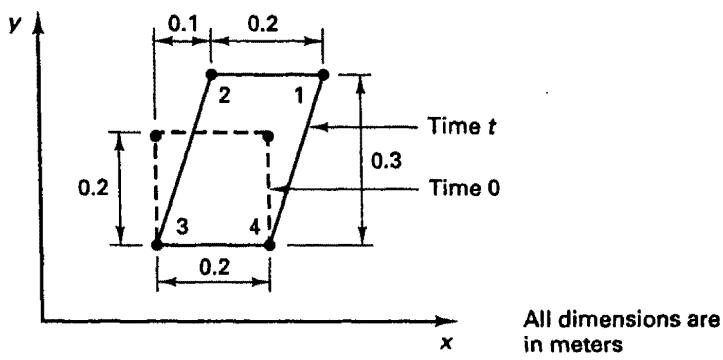

6.37. During a TL analysis, we find that a plane strain element is deformed as shown.

The stress state, not including $\tau_{zz}$ , is $$ ^ \prime \tau = \left[ \begin{array}{l l} 5. 8 4 9 \times 1 0 ^ {7} & 6. 9 7 1 \times 1 0 ^ {7} \\ 6. 9 7 1 \times 1 0 ^ {7} & 1. 5 1 4 \times 1 0 ^ {8} \end{array} \right] \mathrm{Pa} $$ The Poisson's ratio $\nu = 0.3$ and the tangent Young's modulus is $E$ . Compute $\delta K_{11}$ . 6.38. The two-dimensional four-node isoparametric finite element shown is used in an axisymmetric analysis. Evaluate the last row in the $\mathbf{\delta_{0}B_{L}}$ , $\mathbf{\delta_{0}B_{NL}}$ and $\mathbf{\delta_{1}B_{L}}$ , $\mathbf{\delta_{1}B_{NL}}$ matrices at the material particle P corresponding to the TL and UL formulations. The last row in the strain-displacement matrices corresponds to the circumferential strain.


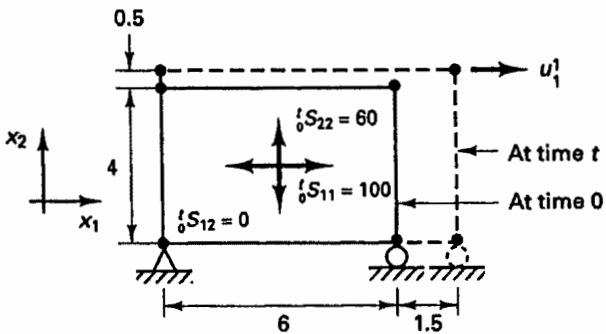

6.39. Consider the four-node plane stress element shown. Using the total Lagrangian formulation calculate the following. (a) The element of the tangent stiffness matrix corresponding to the incremental displacement $u_{1}^{1}$ ; i.e., evaluate element (1, 1) of the matrix $(_{0}^{\prime}\mathbf{K}_{L} + _{0}^{\prime}\mathbf{K}_{NL})$ . (b) The element of the force vector $\delta\mathbf{F}$ corresponding to $u_{1}^{1}$ ; i.e., evaluate element (1) of $\delta\mathbf{F}$ , where $\delta\mathbf{F}$ is the force vector corresponding to the current element stresses. Assume that Young's modulus $E$ and Poisson's ratio $\nu = 0.3$ relate the incremental second Piola-Kirchhoff stresses to the incremental Green-Lagrange strains and assume thickness $h$ at time 0.
