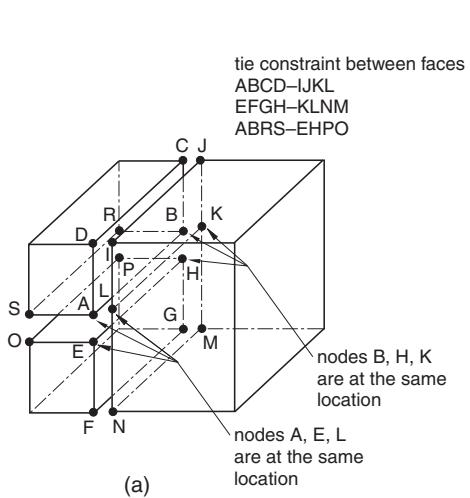

tie constraint between faces ABCD-IJKL EFGH-KLNM ABRS-EHPO S O A L D R B K H G M F N (a) nodes B, H, K are at the same location nodes A, E, L are at the same location

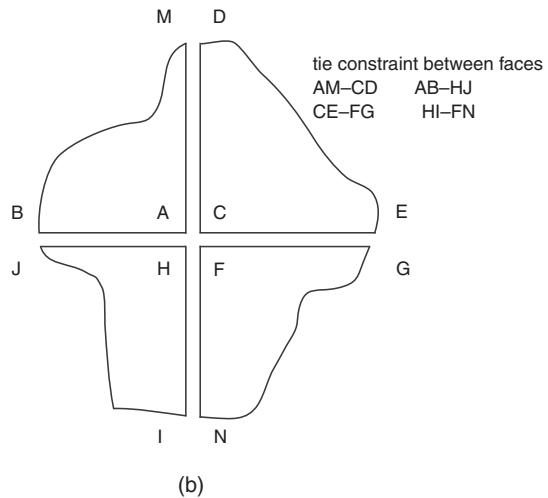

Figure 35.6.1–2 Consistent overconstraints due to intersecting tie constraints.

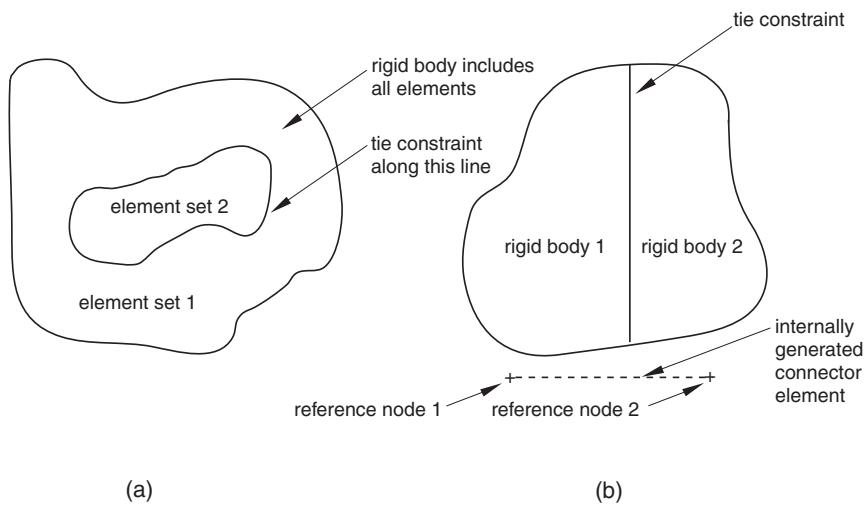

Figure 35.6.1–3 Consistent overconstraints due to combinations of tie and rigid body constraints.
Tie constraint between two rigid bodies
An example of a tie constraint between two rigid bodies is shown in Figure 35.6.1–3(b). If the two surfaces are connected by a tie constraint at more than two or three points (in two- or three-dimensional analyses, respectively), the tie constraint definition is redundant. A connector type BEAM is placed between the two reference nodes, and the tie constraint is removed.
Tie constraint between a deformable and a rigid body
An example of connecting a deformable body to a rigid body with a surface-based tie constraint is shown in Figure 35.6.1–3(c). If the slave surface in the tie constraint definition belongs to the rigid body, the tie and the rigid body constraints are redundant for the slave nodes. If possible, Abaqus/Standard will switch the master and the slave surface in the tie constraint definition. If switching the master and the slave surfaces is not possible due to other modeling restrictions, an error message is issued and the analysis is stopped.

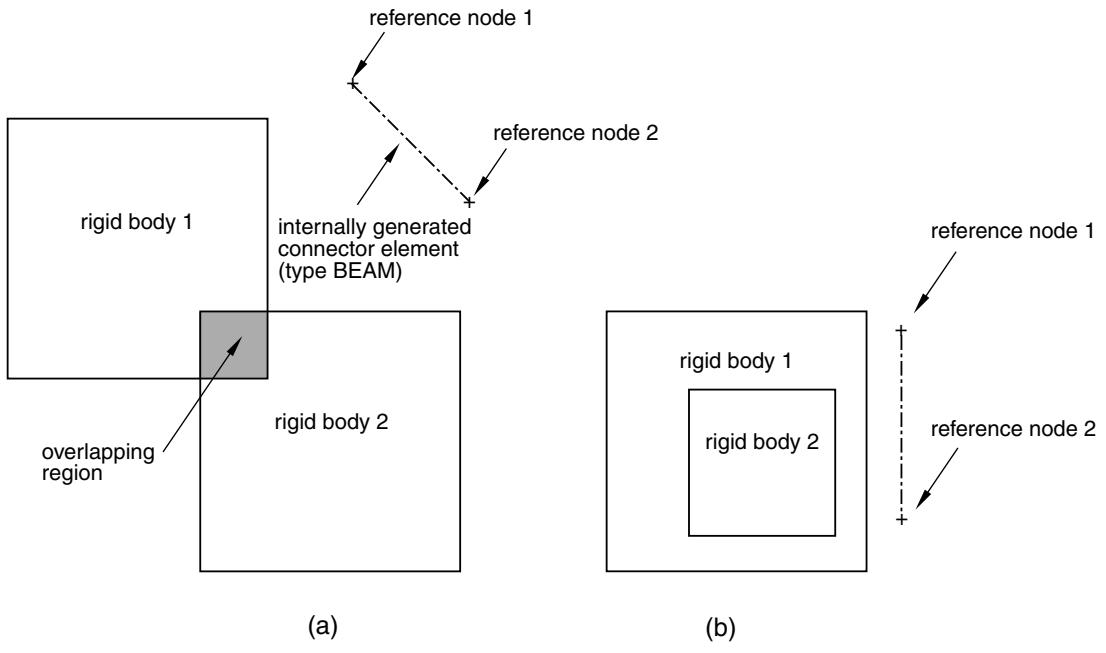

Intersecting rigid bodies
Figure 35.6.1–4(a) illustrates the case when two rigid bodies partially overlap and, thus, the union of the two bodies behaves as one rigid body. However, the motion of the nodes in this region is governed by the motion of the two rigid body reference nodes; hence, the model is overconstrained. In Figure 35.6.1–4(b) several rigid bodies are included in a larger rigid body definition. The nodes belonging to the included bodies will be overconstrained.
