c0 = difference between support plate hole radius and tube outside radius

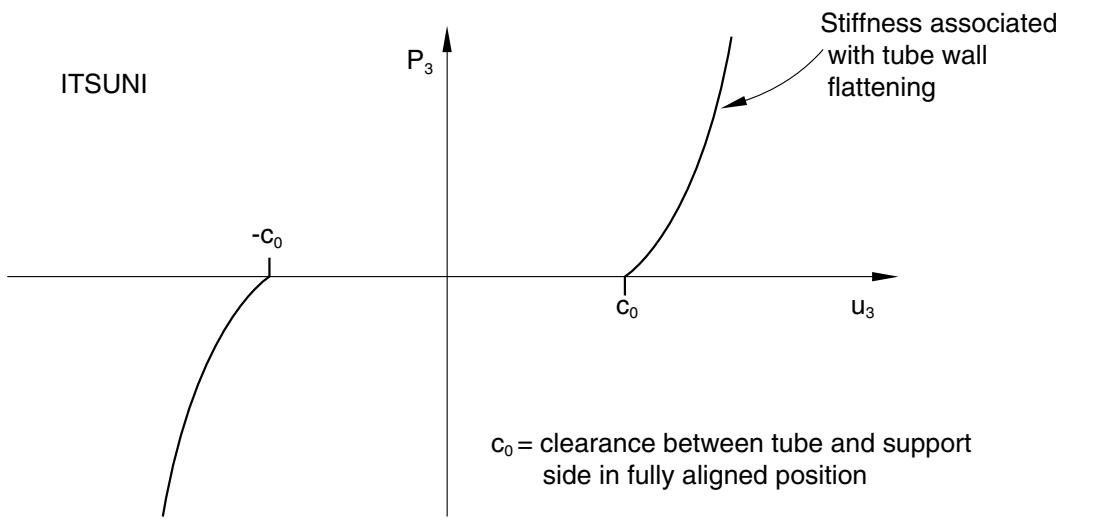

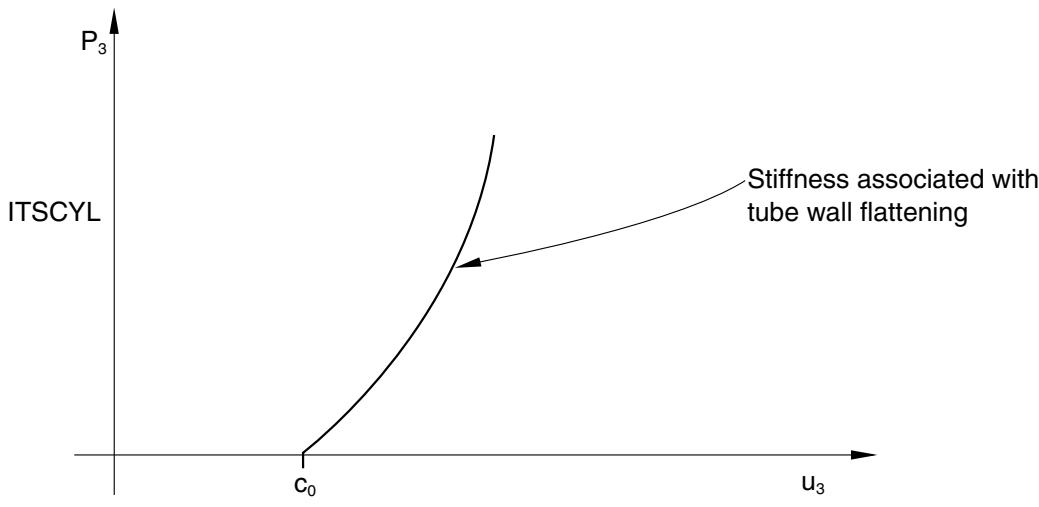

Figure 32.8.1–4 Nonlinear spring behavior in ITS elements to model clearance and tube flattening.
32.8.2 TUBE SUPPORT ELEMENT LIBRARY
Product: Abaqus/Standard
References
| • “Tube support elements,” Section 32.8.1 |
| • *ITS |
Overview
This section provides a reference to the tube support elements available in Abaqus/Standard.
Element types
| ITSUNI | Unidirectional tube support element |
| ITSCYL | Cylindrical geometry tube support element |
Active degrees of freedom
1, 2, 3, 4, 5, 6
Additional solution variables
None.
Nodal coordinates required
X, Y, Z
Element property definition
Input File Usage: *ITS
Element-based loading
None.
Element output
| S11 | Total direct force in the element. |
| S12 | Tangential (shear) force component, caused by friction, in the plane of the cross-section of the tube. |
| S13 | Tangential (shear) force component, caused by friction, parallel to the axis of the tube. |
The force in the spring link and the force in the dashpot are defined as generalized substresses and, therefore, are available as substress selections in the output options, as follows:
SS1 Force in the spring link.
SS2 Force in the dashpot.
The relative axial and tangential displacements corresponding to the forces above are chosen by requesting the corresponding “strains,” except that “strain” component E13 is not defined in element type ITSCYL.
The relative tangential (shear) displacement components during slip are available as “plastic strain” components PE12 and PE13. The “equivalent plastic strain” is defined in these elements as
\Delta \bar {u} ^ {s l} = \sum_ {\mathrm{increments}} \sqrt {(\Delta u _ {1} ^ {s l}) ^ {2} + (\Delta u _ {2} ^ {s l}) ^ {2}},
where \Delta u _ { 1 } ^ { s l } and \Delta u _ { 2 } ^ { s l } are the two relative tangential displacement components.
Nodes associated with the element
ITSUNI: Two nodes—one on the axis of the tube and one equidistant between the two parallel support plates.
ITSCYL: Two nodes—one on the axis of the tube and one at the center of the hole in the support plate.
32.9 Line spring elements
• “Line spring elements for modeling part-through cracks in shells,” Section 32.9.1
• “Line spring element library,” Section 32.9.2
32.9.1 LINE SPRING ELEMENTS FOR MODELING PART-THROUGH CRACKS IN SHELLS
Product: Abaqus/Standard
References
• “Line spring element library,” Section 32.9.2
• *SHELL SECTION
• *SURFACE FLAW
Overview
Line spring elements:
• are used to evaluate part-through cracks (flaws) in shells inexpensively;
• are used together with shell elements;
• can be used with elastic or elastic-plastic (isotropic hardening, Mises yield) material behavior;
• do not include thermal strain effects;
• are written for small-displacement analysis only (large-rotation effects are not included);
• are not available in linear perturbation steps;
• use quite significant approximations (especially in the elastic-plastic case) and should, therefore, be used with care;
• do not provide useful results for crack depths less than 2% or greater than 95% of the shell thickness; and
• will not yield accurate results at the ends of the flaws or locations where the flaw depth varies rapidly with position, due to the three-dimensional nature of the solution in such areas.
Typical applications
Line spring elements provide inexpensive evaluation of part-through cracks in shells. The basic concept is that these elements introduce the local solution, dominated by the singularity at the crack tip, into a shell model of the uncracked geometry. This is accomplished by allowing an additional freedom in the model along the line of the crack, this freedom being provided by the line spring elements, as indicated in Figure 32.9.1–1.
The compliance of the line spring with respect to these additional freedoms embeds the local solution in the global response. From the relative displacements and rotations conjugate to that compliance, Abaqus/Standard computes and prints out the J-integral and, in the linear case, stress intensity factors at integration points in the line spring elements. Because the elements are simple, the analysis is not significantly more expensive than a shell analysis of the uncracked geometry. The results provide acceptable accuracy for many common applications.

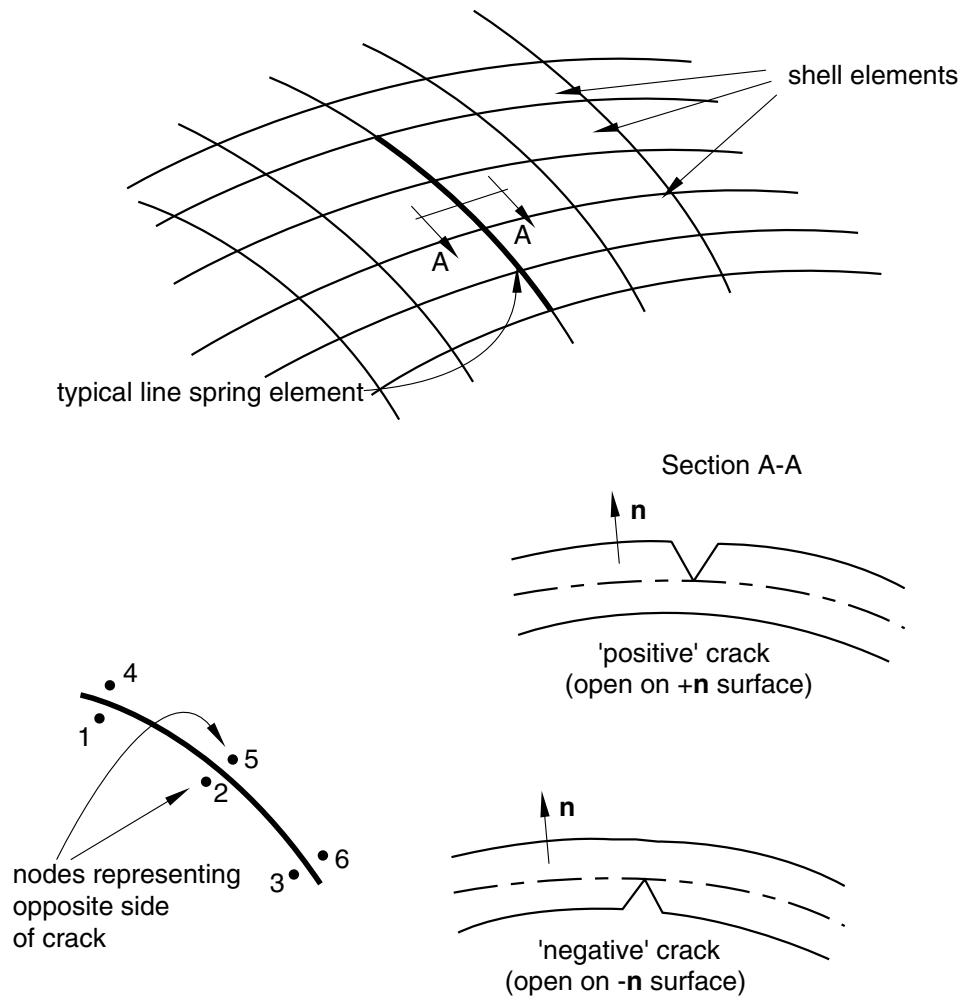

Figure 32.9.1–1 Line spring models.
See “Line spring elements,” Section 3.9.5 of the Abaqus Theory Guide, for details of the theory behind these elements.
Choosing an appropriate element
Two versions of the element are provided—both are intended for use with the second-order shell elements (S8R, S8R5, S9R5). Line spring element LS6 is for general cases, while line spring element LS3S is for use when the flaw lies on a symmetry plane and only one side of the symmetry plane is modeled.
Defining the element’s section properties
You must associate the shell section properties with a set of line spring elements.
Input File Usage: *SHELL SECTION, ELSET=name
Defining a constant section thickness
You can define a constant section thickness for the line spring element as part of the shell section definition.
Input File Usage: *SHELL SECTION
shell thickness
Defining a variable section thickness
Alternatively, you can define a line spring element with continuously varying thickness and specify the thickness of the line spring element at the nodes. In this case any constant section thickness you specify will be ignored, and the line spring thickness will be interpolated from the nodes (see “Nodal thicknesses,” Section 2.1.3). The thickness must be defined at all nodes connected to the element.
Input File Usage: Use both of the following options:
*SHELL SECTION, NODAL THICKNESS
*NODAL THICKNESS
Assigning a material definition to a set of line spring elements
You must associate a material definition with each shell section definition.
Line spring elements can be used with isotropic elastic or elastic-plastic (isotropic hardening, Mises yield) material behavior (“Linear elastic behavior,” Section 22.2.1, and “Classical metal plasticity,” Section 23.2.1); these are the only material behavior definitions that are relevant to these elements. The elastic behavior must be isotropic. Plasticity is included for Mode I (crack opening) response only; an elastic-plastic analysis will be accurate only when Mode I behavior dominates.
The same material must be used through the section: a layered section cannot be defined with a line spring. Thermal strain effects are not included in the line spring elements; however, most of the thermal strain occurs in the shell, so this is not important in many cases (it is within the approximation made by line springs).
Input File Usage: *SHELL SECTION, ELSET=name, MATERIAL=name
Defining the flaw
The flaw is defined by specifying its depth at each node along the crack front. You must identify whether the crack originates from the positive or negative surface of the shell (the positive surface is located a positive distance along the surface normal from the shell’s middle surface, as shown in Figure 32.9.1–1).
At a point where the surface flaw depth is very small or zero, the compliance of the line spring element is also very small. To avoid numerical problems when a small compliance is inverted to form a stiffness, the minimum surface flaw depth used by Abaqus/Standard is 2% of the thickness specified for
the line spring element, even if you specify a smaller surface flaw depth. If you want to constrain the two nodes where the surface flaw depth is zero to have the same displacements, you should tie the nodes together with a linear constraint equation or a multi-point constraint (“Kinematic constraints: overview,” Section 35.1.1). This is normally not required.
Input File Usage: *SURFACE FLAW, SIDE=POSITIVE or NEGATIVE node number or node set label, crack depth
Defining the shell model that contains the flaw
You must specify the uncracked thickness of the shell in the section definition. The geometry of the shell at the flaw (coordinates and surface normals) is given in the usual way.
Including the effects of pressure loading on the crack faces
Cracks often occur on surfaces that are subjected to pressure; to include the effect of such loading on the crack faces, suitable distributed loading types are provided. These loading types are not intended for elastic-plastic line springs because the nodal equivalent forces calculated for the pressures are based on superposition methods that are valid only in the linear elastic case.
J -integral output
If the material is linear elastic only, the J-integral value and the stress intensity factors are output; for the elastic-plastic case local values of J ^ { e l } and J ^ { p l } are provided as well as their sum into a single J value. In this case the J values will have acceptable accuracy only if J ^ { p l } is much larger than J ^ { e l } . See “Line spring elements,” Section 3.9.5 of the Abaqus Theory Guide, for further details.
