and U_{3} = \overline{V}_{3}^{(3)} = 292
For i = 3 , \overline{V}_2^{(2)} = \overline{V}_2^{(3)} - l_{23}U_3 = 35 - (-2)(292) = 619
and U_{2} = \overline{V}_{2}^{(2)} = 619
For i = 2 , \overline{V}_1^{(1)} = \overline{V}_1^{(2)} - l_{12}U_2 = 17 - (-1)(619) = 636
and U_{1} = \overline{V}_{1}^{(1)} = 636
The elements stored in the vector that initially stored the loads are after step i = 5, 4, 3, 2, respectively:
\left[ \begin{array}{l} 1 7 \\ 3 5 \\ 7 0 \\ 7 4 \\ 3 4 \end{array} \right]; \quad \left[ \begin{array}{l} 1 7 \\ 3 5 \\ 2 9 2 \\ 7 4 \\ 3 4 \end{array} \right]; \quad \left[ \begin{array}{l} 1 7 \\ 6 1 9 \\ 2 9 2 \\ 7 4 \\ 3 4 \end{array} \right]; \quad \left[ \begin{array}{l} 6 3 6 \\ 6 1 9 \\ 2 9 2 \\ 7 4 \\ 3 4 \end{array} \right]
where the last vector gives the solution U.
Considering the effectiveness of the active column solution algorithm, it should be noted that for a specific matrix K the algorithm frequently gives an efficient solution because no operations are performed on zero elements outside the skyline, which also implies that only the elements below the skyline need be stored. However, the total number of operations performed is not an absolute minimum because, in addition, all those multiplications could be skipped in (8.21) to (8.25) for which l_{ri} or g_{rj} is zero. This skipping of course requires additional logic, but is effective if there are many such cases, which is the main premise on which sparse solvers are based. These solvers, which can be very effective in large three-dimensional solutions, avoid the storage of elements that remain zero and skip the relevant operations, see, for example, A. George, J. R. Gilbert, and J. W. H. Liu (eds.) [A].
To evaluate the efficiency of the active column solution, let us consider a system with constant column heights, i.e. a half-bandwidth m_{K} such that m_{K} = i - m_{i} for all i, i > m_{K} , and perform an operation count based on (8.16) to (8.25). We define one operation to consist of one multiplication (or division), which is nearly always followed by an addition. In this case the number of operations required for the LDL^{T} decomposition of K are approximately n[m_{K} + (m_{K} - 1) + \cdots + 1] = \frac{1}{2} nm_{K}^{2} , and for the reduction and back-substitution of a load vector, an additional number of approximately 2nm_{K} operations are needed. In practice, systems with exactly constant column heights are encountered rather seldom and therefore these operation counts should be refined to \frac{1}{2} \Sigma_{i} (i - m_{i})^{2} and 2 \Sigma_{i} (i - m_{i}) , respectively. However, we frequently still use the constant half-bandwidth formulas with a mean or effective half-bandwidth merely to obtain an indication of the required solution effort.
Since the number of operations is governed by the pattern of the nonzero elements in the matrix, algorithms have been developed that reorder the equations so as to increase the effectiveness of the equation solution. When the active column solution scheme is used, the reordering is to reduce the column heights for an effective solution (see E. Cuthill and J. McKee [A] and N. E. Gibbs, W. G. Poole, Jr., and P. K. Stockmeyer [A]), while when a sparse solver is used the reordering is to reduce the total number of operations taking due account of not operating on elements that remain zero throughout the solution. This
requirement for a sparse solver means that the number of fill-in elements (elements that originally are zero but become nonzero) should be small (see A. George, J. R. Gilbert, and J. W. H. Liu (eds.) [A]). The use of such reordering procedures, while generally not giving the actual optimal ordering of the equations, is very important because in practice the initial ordering of the equations is usually generated without regard to the efficiency of the equation solution but merely with regard to the effectiveness of the definition of the model.
The solution algorithm in (8.21) to (8.25) has been presented in two-dimensional matrix notation; e.g., element (r,j) of K has been denoted by k_{rj} . Also, to demonstrate the working of the algorithm, in Examples 8.4 and 8.5 the elements considered in the reduction have been displayed in their corresponding matrix locations. However, in actual computer solution, the active columns of the matrix K are stored effectively in a one-dimensional array. Assume that the storage scheme discussed in Chapter 12 is used; i.e., the pertinent elements of K are stored in the one-dimensional array A of length NWK and the addresses of the diagonal elements of K are stored in MAXA. An effective subroutine that uses the algorithm presented above [i.e., the relations in (8.21) to (8.25)] but operates on the stiffness matrix using this storage scheme is given next.
Subroutine COLSOL. Program COLSOL is an active column solver to obtain the LDL^{T} factorization of a stiffness matrix or reduce and back-substitute the load vector. The complete process gives the solution of the finite element equilibrium equations. The argument variables and use of the subroutine are defined by means of comments in the program.
SUBROUTINE COLSOL (A,V,MAXA,NN,NWK,NNM,KKK,IOUT) COL00001
C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
P R O G R A M . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . - - INPUT VARIABLES - - . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A(NWK) = STIFFNESS MATRIX STORED IN COMPACTED FORM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V(NN) = RIGHT-HAND-SIDE LOAD VECTOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MAXA(NNM) = VECTOR CONTAINING ADDRESSES OF DIAGONAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . N N = NUMBER OF EQUATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . NWK = NUMBER OF ELEMENTS BELOW SKYLINE OF MATRIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . NN = NUMBER OF ELEMENTS BELOW SKYLINE OF MATRIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . N N = NUMBER OF ELEMENTS BELOW SKYLINE OF MATRIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . 1000012 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000012 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000012 . . . . . . . . . . 1000012 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . 1000012 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000012 . . . . . . . . . . . . . . . . . 1000012 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . 1000012 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000012 . . . . . . . . . . . . . . . . . . . . . . . . 1000012 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000012 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000012 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000012 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000012 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000012 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000012 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000012 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000012 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000012 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000012 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000012 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000012 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000012 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000012 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000012 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000012 . . . . . . . . . . . . . . . . . . . . . . . . . 1000012 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000012 . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000012 . . . . . . . . . . . . . . . . . . 1000012 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000012 . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000012 . . . . . . . . . . . 1000012 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000012 . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000012 . . . . 1000012 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000012 . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100012 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100022 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200012 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . 1000012 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . 1000012 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . 1000012 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . 1000012 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000012 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000012 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000012 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000012 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000012 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000012 . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000012 . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000012 . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000012 . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100122 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1100012 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000022 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1001122 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101122 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1011122 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10101122 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1010122 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2010122 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10011122 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11011122 . . . . . . . . . . . . . . . . . . . . . . . .
KU=MAXA(N+1) - 1
KH=KU - KL
IF (KH) 110,90,50
50 K=N - KH
IC=0
KLT=KU
DO 80 J=1,KH
IC=IC + 1
KLT=KLT - 1
KI=MAXA(K)
ND=MAXA(K+1) - KI - 1
IF (ND) 80,80,60
60 KK=MIN0(IC,ND)
C=0.
DO 70 L=1,KK
70 C=C + A(KI+L)*A(KLT+L)
A(KLT)=A(KLT) - C
80 K=K + 1
90 K=N
B=0.
DO 100 KK=KL,KU
K=K - 1
KI=MAXA(K)
C=A(KK)/A(KI)
B=B + C*A(KK)
100 A(KK)=C
A(KN)=A(KN) - B
110 IF (A(KN)) 120,120,140
120 WRITE (IOUT,2000) N,A(KN)
GO TO 800
140 CONTINUE
GO TO 900
C
REDUCE RIGHT-HAND-SIDE LOAD VECTOR
C
150 DO 180 N=1,NN
KL=MAXA(N) + 1
KU=MAXA(N+1) - 1
IF (KU-KL) 180,160,160
160 K=N
C=0.
DO 170 KK=KL,KU
K=K - 1
170 C=C + A(KK)*V(K)
V(N)=V(N) - C
180 CONTINUE
C
BACK-SUBSTITUTE
C
DO 200 N=1,NN
K=MAXA(N)
200 V(N)=V(N)/A(K)
IF (NN.EQ.1) GO TO 900
N=NN
DO 230 L=2,NN
KL=MAXA(N) + 1
KU=MAXA(N+1) - 1
IF (KU-KL) 230,210,210
210 K=N
DO 220 KK=KL,KU
K=K - 1
220 V(K)=V(K) - A(KK)*V(N)
230 N=N - 1
GO TO 900
C
800 STOP
900 RETURN
C
2000 FORMAT (//' STOP - STIFFNESS MATRIX NOT POSITIVE DEFINITE',//,
1 ' NONPOSITIVE PIVOT FOR EQUATION ',I8,//,
2 ' PIVOT = ',E20.12 )
END
COL00041
COL00042
COL00043
COL00044
COL00045
COL00046
COL00047
COL00048
COL00049
COL00050
COL00051
COL00052
COL00053
COL00054
COL00055
COL00056
COL00057
COL00058
COL00059
COL00060
COL00061
COL00062
COL00063
COL00064
COL00065
COL00066
COL00067
COL00068
COL00069
COL00070
COL00071
COL00072
COL00073
COL00074
COL00075
COL00076
COL00077
COL00078
COL00079
COL00080
COL00081
COL00082
COL00083
COL00084
COL00085
COL00086
COL00087
COL00088
COL00089
COL00090
COL00091
COL00092
COL00093
COL00094
COL00095
COL00096
COL00097
COL00098
COL00099
COL00100
COL00101
COL00102
COL00103
COL00104
COL00105
COL00106
COL00107
COL00108
COL00109
COL00110
COL00111
COL00112
8.2.4 Cholesky Factorization, Static Condensation, Substructures, and Frontal Solution
In addition to the LDL^{T} decomposition described in the preceding sections, various other schemes are used that are closely related. All methods are applications of the basic Gauss elimination procedure.
In the Cholesky factorization the stiffness matrix is decomposed as follows:
\mathbf {K} = \tilde {\mathbf {L}} \tilde {\mathbf {L}} ^ {T} \tag {8.26}
where
\tilde {\mathbf {L}} = \mathbf {L} \mathbf {D} ^ {1 / 2} \tag {8.27}
Therefore, the Cholesky factors could be calculated from the D and L factors, but, more generally, the elements of \tilde{L} are calculated directly. An operation count shows that slightly more operations are required in the equation solution if the Cholesky factorization is used rather than the LDL^{T} decomposition. In addition, the Cholesky factorization is suitable only for the solution of positive definite systems, for which all diagonal elements d_{ii} are positive, because otherwise complex arithmetic would be required. On the other hand, the LDL^{T} decomposition can also be used effectively on indefinite systems (see Section 8.2.5).
Considering a main use of the Cholesky factorization, the decomposition is employed effectively in the transformation of a generalized eigenproblem to the standard form (see Section 10.2.5).
EXAMPLE 8.7: Calculate the Cholesky factor \tilde{L} of the stiffness matrix K of the simply supported beam treated in Section 8.2.1 and in Examples 8.2 to 8.4.
The L and D factors of the beam stiffness matrix have been given in Example 8.3. Rounding to three significant decimals, we have
\mathbf {L} = \left[ \begin{array}{c c c c} 1. 0 0 0 & & & \\ - 0. 8 0 0 & 1. 0 0 0 & 0 & \\ 0. 2 0 0 & - 1. 1 4 3 & 1. 0 0 0 & \\ 0. 0 0 0 & 0. 3 5 7 & - 1. 3 3 3 & 1. 0 0 0 \end{array} \right]; \quad \mathbf {D} = \left[ \begin{array}{c c c c} 5. 0 0 0 & & & \\ & 2. 8 0 0 & & \\ & & 2. 1 4 3 & \\ & & & 0. 8 3 3 \end{array} \right]
Hence,
\tilde {\mathbf {L}} = \left[ \begin{array}{c c c c} 1. 0 0 0 & & & \\ - 0. 8 0 0 & 1. 0 0 0 & & \\ 0. 2 0 0 & - 1. 1 4 3 & 1. 0 0 0 & \\ 0. 0 0 0 & 0. 3 5 7 & - 1. 3 3 3 & 1. 0 0 0 \end{array} \right] \left[ \begin{array}{c c c c} 2. 2 3 6 & & & \\ & 1. 6 7 3 & & \\ & & 1. 4 6 4 & \\ & & & 0. 9 1 3 \end{array} \right]
\mathbf {L} = \left[ \begin{array}{c c c c} 2. 2 3 6 & & & \\ - 1. 7 8 9 & 1. 6 7 3 & & \\ 0. 4 4 7 & - 1. 9 1 2 & 1. 4 6 4 & \\ 0 & 0. 5 9 7 & - 1. 9 5 2 & 0. 9 1 3 \end{array} \right]
An algorithm that in some cases can effectively be used in the solution of the equilibrium equations is static condensation (see E. L. Wilson [B]). The name “static condensation” refers to dynamic analysis, for which the solution technique is demonstrated in Section 10.3.1. Static condensation is employed to reduce the number of element degrees
of freedom and thus, in effect, to perform part of the solution of the total finite element system equilibrium equations prior to assembling the structure matrices K and R. Consider the three-node truss element in Example 8.8. Since the degree of freedom at the midnode does not correspond to a degree of freedom of any other element, we can eliminate it to obtain the element stiffness matrix that corresponds to the degrees of freedom 1 and 3 only. The elimination of the degree of freedom 2 is carried out using, in essence, Gauss elimination, as presented in Section 8.2.1 (see Example 8.1).
In order to establish the equations used in static condensation, we assume that the stiffness matrix and corresponding displacement and force vectors of the element under consideration are partitioned into the form
\left[ \begin{array}{l l} \mathbf {K} _ {a a} & \mathbf {K} _ {a c} \\ \mathbf {K} _ {c a} & \mathbf {K} _ {c c} \end{array} \right] \left[ \begin{array}{l} \mathbf {U} _ {a} \\ \mathbf {U} _ {c} \end{array} \right] = \left[ \begin{array}{l} \mathbf {R} _ {a} \\ \mathbf {R} _ {c} \end{array} \right] \tag {8.28}
where U_{a} and U_{c} are the vectors of displacements to be retained and condensed out, respectively. The matrices K_{aa} , K_{ac} , and K_{cc} and vectors R_{a} and R_{c} correspond to the displacement vectors U_{a} and U_{c} .
Using the second matrix equation in (8.28), we obtain
\mathbf {U} _ {c} = \mathbf {K} _ {c c} ^ {- 1} (\mathbf {R} _ {c} - \mathbf {K} _ {c a} \mathbf {U} _ {a}) \tag {8.29}
The relation in (8.29) is used to substitute for U_{c} into the first matrix equation in (8.28) to obtain the condensed equations
(\mathbf {K} _ {a a} - \mathbf {K} _ {a c} \mathbf {K} _ {c c} ^ {- 1} \mathbf {K} _ {c a}) \mathbf {U} _ {a} = \mathbf {R} _ {a} - \mathbf {K} _ {a c} \mathbf {K} _ {c c} ^ {- 1} \mathbf {R} _ {c} \tag {8.30}
Comparing (8.30) with the Gauss solution scheme introduced in Section 8.2.1, it is seen that static condensation is, in fact, Gauss elimination on the degrees of freedom U_{c} (see Example 8.8). In practice, therefore, static condensation is carried out effectively by using Gauss elimination sequentially on each degree of freedom to be condensed out, instead of following through the formal matrix procedure given in (8.28) to (8.30), where it is valuable to keep the physical meaning of Gauss elimination in mind (see Section 8.2.1). Since the system stiffness matrix is obtained by direct addition of the element stiffness matrices, we realize that when condensing out internal element degrees of freedom, in fact, part of the total Gauss solution is already carried out on the element level.
The advantage of using static condensation on the element level is that the order of the system matrices is reduced, which may mean that use of backup storage is prevented. In addition, if subsequent elements are identical, the stiffness matrix of only the first element needs to be derived, and performing static condensation on the element internal degrees of freedom also reduces the computer effort required. It should be noted, though, that if static condensation is actually carried out for each element (and no advantage is taken of possible identical finite elements), the total effort involved in the static condensation on all element stiffness matrices and in the Gauss elimination solution of the resulting assembled equilibrium equations is, in fact, the same as using Gauss elimination on the system equations established from the uncondensed element stiffness matrices.
EXAMPLE 8.8: The stiffness matrix of the truss element in Fig. E8.8 is given on the next page. Use static condensation as given in (8.28) to (8.30) to condense out the internal element degree of freedom. Then use Gauss elimination directly on the internal degree of freedom.


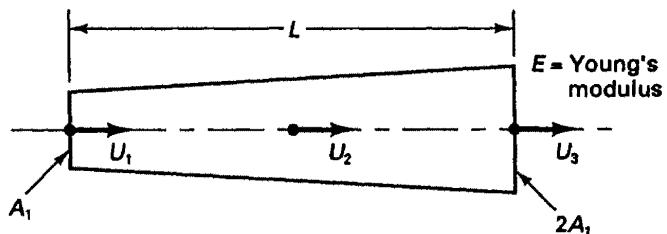

L E = Young's modulus U₁ U₂ U₃ A₁ 2A₁
Figure E8.8 Truss element with linearly varying area
We have for the element,
\frac {E A _ {1}}{6 L} \left[ \begin{array}{r r r} 1 7 & - 2 0 & 3 \\ - 2 0 & 4 8 & - 2 8 \\ 3 & - 2 8 & 2 5 \end{array} \right] \left[ \begin{array}{l} U _ {1} \\ U _ {2} \\ U _ {3} \end{array} \right] = \left[ \begin{array}{l} R _ {1} \\ R _ {2} \\ R _ {3} \end{array} \right] \tag {a}
In order to apply the equations in (8.28) to (8.30), we rearrange the equations in (a) to obtain
\frac {E A _ {1}}{6 L} \left[ \begin{array}{r r r} 1 7 & 3 & - 2 0 \\ 3 & 2 5 & - 2 8 \\ - 2 0 & - 2 8 & 4 8 \end{array} \right] \left[ \begin{array}{l} U _ {1} \\ U _ {3} \\ U _ {2} \end{array} \right] = \left[ \begin{array}{l} R _ {1} \\ R _ {3} \\ R _ {2} \end{array} \right]
The relation in (8.30) now gives
\frac {E A _ {1}}{6 L} \left\{\left[ \begin{array}{c c} 1 7 & 3 \\ 3 & 2 5 \end{array} \right] - \left[ \begin{array}{c} - 2 0 \\ - 2 8 \end{array} \right] \left[ \frac {1}{4 8} \right] \left[ \begin{array}{c c} - 2 0 & - 2 8 \end{array} \right] \right\} \left[ \begin{array}{c} U _ {1} \\ U _ {3} \end{array} \right] = \left[ \begin{array}{c} R _ {1} + \frac {2 0}{4 8} R _ {2} \\ R _ {3} + \frac {2 8}{4 8} R _ {2} \end{array} \right]
or \frac{13}{9}\frac{EA_1}{L}\left[ \begin{array}{cc}1 & -1\\ -1 & 1 \end{array} \right]\left[ \begin{array}{l}U_1\\ U_3 \end{array} \right] = \left[ \begin{array}{ll}R_1 + \frac{5}{12} R_2\\ R_3 + \frac{7}{12} R_2 \end{array} \right]
Also, (8.29) yields U_{2} = \frac{1}{24}\left(\frac{3L}{EA_{1}} R_{2} + 10U_{1} + 14U_{3}\right) (b)
Using Gauss elimination directly on (a) for U_{2} , we obtain
\frac {E A _ {1}}{6 L} \left[ \begin{array}{c c c} 1 7 - \frac {(2 0) (2 0)}{4 8} & 0 & 3 - \frac {(2 0) (2 8)}{4 8} \\ - 2 0 & 4 8 & - 2 8 \\ 3 - \frac {(2 0) (2 8)}{4 8} & 0 & 2 5 - \frac {(2 8) (2 8)}{4 8} \end{array} \right] \left[ \begin{array}{l} U _ {1} \\ U _ {2} \\ U _ {3} \end{array} \right] = \left[ \begin{array}{c} R _ {1} + \frac {2 0}{4 8} R _ {2} \\ R _ {2} \\ R _ {3} + \frac {2 8}{4 8} R _ {2} \end{array} \right] \tag {c}
But separating the equations for U_{1} and U_{3} from the equation for U_{2} , we can rewrite the relation in (c) as
\frac {1 3}{9} \frac {E A _ {1}}{L} \left[ \begin{array}{c c} 1 & - 1 \\ - 1 & 1 \end{array} \right] \left[ \begin{array}{l} U _ {1} \\ U _ {3} \end{array} \right] = \left[ \begin{array}{l} R _ {1} + \frac {5}{1 2} R _ {2} \\ R _ {3} + \frac {7}{1 2} R _ {2} \end{array} \right]
and U_{2} = \frac{1}{24}\left[\frac{3L}{EA_{1}} R_{2} + 10U_{1} + 14U_{3}\right]
which are the relations obtained using the formal static condensation procedure.
EXAMPLE 8.9: Use the stiffness matrix of the three degree of freedom truss element in Example 8.8 to establish the equilibrium equations of the structure shown in Fig. E8.9. Use Gauss elimination directly on degrees of freedom U_{2} and U_{4} . Show that the resulting equilibrium equations are identical to those obtained when the two degree of freedom truss element stiffness matrix derived in Example 8.8 (the internal degree of freedom has been condensed out) is used to assemble the stiffness matrix corresponding to U_{1} , U_{3} , and U_{5} .


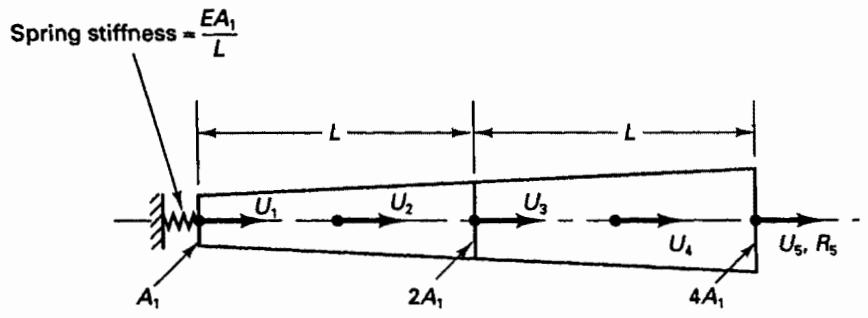

Spring stiffness = EA₁/L L L U₁ U₂ U₃ U₄ U₅, R₅ A₁ 2A₁ 4A₁
Figure E8.9 Structure composed of two truss elements of Fig. E8.8 and a spring support
The stiffness matrix of the three-element assemblage in Fig. E8.9 is obtained using the direct stiffness method; i.e., we calculate
\mathbf {K} = \sum_ {m = 1} ^ {3} \mathbf {K} ^ {(m)} \tag {a}
where \mathbf{K}^{(1)} = \frac{EA_1}{6L}\left[ \begin{array}{cccccc}6 & 0 & 0 & 0 & 0\\ 0 & 0 & 0 & 0 & 0\\ 0 & 0 & 0 & 0 & 0\\ 0 & 0 & 0 & 0 & 0\\ 0 & 0 & 0 & 0 & 0 \end{array} \right]
\mathbf {K} ^ {(2)} = \frac {E A _ {1}}{6 L} \left[ \begin{array}{c c c c c} 1 7 & - 2 0 & 3 & 0 & 0 \\ - 2 0 & 4 8 & - 2 8 & 0 & 0 \\ 3 & - 2 8 & 2 5 & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 \end{array} \right]
\mathbf {K} ^ {(3)} = \frac {E A _ {1}}{6 L} \left[ \begin{array}{c c c c c} 0 & 0 & 0 & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 \\ 0 & 0 & 3 4 & - 4 0 & 6 \\ 0 & 0 & - 4 0 & 9 6 & - 5 6 \\ 0 & 0 & 6 & - 5 6 & 5 0 \end{array} \right]
Hence the equilibrium equations of the structure are
\frac {E A _ {1}}{6 L} \left[ \begin{array}{r r r r r} 2 3 & - 2 0 & 3 & 0 & 0 \\ - 2 0 & 4 8 & - 2 8 & 0 & 0 \\ 3 & - 2 8 & 5 9 & - 4 0 & 6 \\ 0 & 0 & - 4 0 & 9 6 & - 5 6 \\ 0 & 0 & 6 & - 5 6 & 5 0 \end{array} \right] \left[ \begin{array}{l} U _ {1} \\ U _ {2} \\ U _ {3} \\ U _ {4} \\ U _ {5} \end{array} \right] = \left[ \begin{array}{l} 0 \\ 0 \\ 0 \\ 0 \\ R _ {5} \end{array} \right]
Using Gauss elimination on degrees of freedom U_{2} and U_{4} , we obtain
\frac {E A _ {1}}{6 L} \left[ \begin{array}{c c c c c} 2 3 - \frac {(2 0) (2 0)}{4 8} & 0 & 3 - \frac {(2 0) (2 8)}{4 8} & 0 & 0 \\ - 2 0 & 4 8 & - 2 8 & 0 & 0 \\ 3 - \frac {(2 0) (2 8)}{4 8} & 0 & 5 9 - \frac {(2 8) (2 8)}{4 8} - \frac {(4 0) (4 0)}{9 6} & 0 & 6 - \frac {(4 0) (5 6)}{9 6} \\ 0 & 0 & - 4 0 & 9 6 & - 5 6 \\ 0 & 0 & 6 - \frac {(4 0) (5 6)}{9 6} & 0 & 5 0 - \frac {(5 6) (5 6)}{9 6} \end{array} \right] \left[ \begin{array}{l} U _ {1} \\ U _ {2} \\ U _ {3} \\ U _ {4} \\ U _ {5} \end{array} \right] = \left[ \begin{array}{l} 0 \\ 0 \\ 0 \\ 0 \\ R _ {5} \end{array} \right] \tag {b}
Now, extracting the equilibrium equations corresponding to degrees of freedom 1, 3, and 5 and degrees of freedom 2 and 4 separately, we have
\frac {1 3}{9} \frac {E A _ {1}}{L} \left[ \begin{array}{c c c} \frac {2 2}{1 3} & - 1 & 0 \\ - 1 & 3 & - 2 \\ 0 & - 2 & 2 \end{array} \right] \left[ \begin{array}{l} U _ {1} \\ U _ {3} \\ U _ {5} \end{array} \right] = \left[ \begin{array}{l} 0 \\ 0 \\ R _ {5} \end{array} \right] \tag {c}
and U_{2} = \frac{1}{12} [5U_{1} + 7U_{3}]
U _ {4} = \frac {1}{1 2} \left[ 5 U _ {3} + 7 U _ {5} \right] \tag {d}
However, using the two degree of freedom truss element stiffness matrix derived in Example 8.8 to directly assemble the structure stiffness matrix corresponding to degrees of freedom 1, 3, and 5, we use as element stiffness matrices in (a),
\mathbf {K} ^ {(1)} = \frac {1 3}{9} \frac {E A _ {1}}{L} \left[ \begin{array}{l l l} \frac {9}{1 3} & 0 & 0 \\ 0 & 0 & 0 \\ 0 & 0 & 0 \end{array} \right]
\mathbf {K} ^ {(2)} = \frac {1 3}{9} \frac {E A _ {1}}{L} \left[ \begin{array}{c c c} 1 & - 1 & 0 \\ - 1 & 1 & 0 \\ 0 & 0 & 0 \end{array} \right] \tag {e}
\mathbf {K} ^ {(3)} = \frac {1 3}{9} \frac {E A _ {1}}{L} \left[ \begin{array}{c c c} 0 & 0 & 0 \\ 0 & 2 & - 2 \\ 0 & - 2 & 2 \end{array} \right] \tag {f}
and obtain the stiffness matrix in (c). Also, the relation (b) in Example 8.8 corresponds to relations (d) in this example. It should be noted that the total effort to solve the equilibrium equations using the condensed truss element stiffness matrix is less than when the original three degree of freedom element stiffness matrix is used because in the first case the internal degree of freedom was statically condensed out only once, whereas in (b) the element internal degree of freedom is, in fact, statically condensed out twice. The direct solution using the condensed element stiffness matrices in (e) and (f) is, however, possible only because these stiffness matrices are multiples of each other.
As indicated in Example 8.9, it can be particularly effective to employ static condensation when the same element is used many times. An application of this concept is employed in substructure analysis, in which the total structure is considered to be an assemblage of substructures (see, for example, J. S. Przemieniecki [A] and M. F. Rubinstein [A]). Each substructure, in turn, is idealized as an assemblage of finite elements, and all
internal degrees of freedom are statically condensed out. The total structure stiffness is formed by assembling the condensed substructure stiffness matrices. Therefore, in effect, a substructure is used in the same way as an individual finite element with internal degrees of freedom that are statically condensed out prior to the element assemblage process. If many substructures are identical, it is effective to establish a library of substructures from which a condensed total structure stiffness matrix is formed.
It should be noted that the unreduced complete structure stiffness matrix is never calculated in substructure analysis, and input data are required only for each substructure in the library plus information on the assemblage of the substructures to make up the complete structure. Typical applications of finite element analysis using substructuring are found in the analysis of buildings and ship hulls, where the substructure technique has allowed economical analysis of very large finite element systems. The use of substructuring can also be effective in the analysis of structures with local nonlinearities in static and dynamic response calculations (see K. J. Bathe and S. Gracewski [A]).
As a simple example of substructuring, we refer to Example 8.9, in which each substructure is composed simply of one element, and the uncondensed and condensed stiffness matrix of a typical substructure was given in Example 8.8.
The effectiveness of analysis using the basic substructure concept described above can in many cases still be improved on by defining different levels of substructures; i.e., since each substructure can be looked on as a “super-finite element,” it is possible to define second, third, etc., levels of substructuring. In a similar procedure, two substructures are always combined to define the next-higher-level substructure until the final substructure is, in fact, the actual structure under consideration. The procedure may be employed in one-, two-, or three-dimensional analysis and, as pointed out earlier, is indeed only an effective application of Gauss elimination, in which advantage is taken of the repetition of submatrices, which are the stiffness matrices that correspond to the identical substructures. The possibility of using the solution procedure effectively therefore depends on whether the structure is made up of repetitive substructures, and this is the reason the procedure can be very effective in special-purpose programs.
EXAMPLE 8.10: Use substructuring to evaluate the stiffness matrix and the load vector corresponding to the end nodal point degrees of freedom U_{1} and U_{9} of the bar in Fig. E8.10.
The basic element of which the bar is composed is the three degree of freedom truss element considered in Example 8.8. The equilibrium equations of the element corresponding to the two degrees of freedom U_{1} and U_{3} as shown in Fig. E8.10 are
\frac {1 3}{9} \frac {A _ {1} E}{L} \left[ \begin{array}{c c} 1 & - 1 \\ - 1 & 1 \end{array} \right] \left[ \begin{array}{l} U _ {1} \\ U _ {3} \end{array} \right] = \left[ \begin{array}{l} R _ {1} + \frac {5}{1 2} R _ {2} \\ R _ {3} + \frac {7}{1 2} R _ {2} \end{array} \right] \tag {a}
Since the internal degree of freedom U_{2} has been statically condensed out to obtain the equilibrium relations in (a), we may regard the two degree of freedom element as a first-level substructure. We should recall that once U_{1} and U_{3} have been calculated, we can evaluate U_{2} using the relation (b) in Example 8.8:
U _ {2} = \frac {1}{2 4} \left(\frac {3 L}{E A _ {1}} R _ {2} + 1 0 U _ {1} + 1 4 U _ {3}\right) \tag {b}
It is now effective to evaluate a second-level substructure corresponding to degrees of freedom U_{1} and U_{5} of the bar. For this purpose we use the stiffness matrix and load vector in (a)


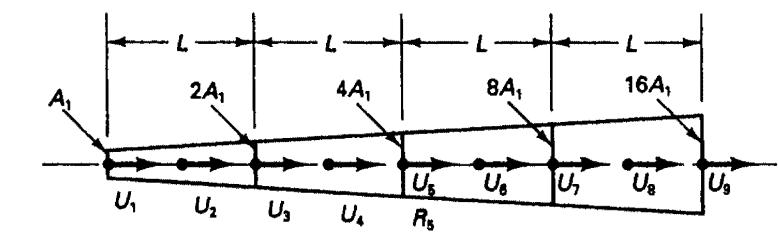

L L L L 2A₁ 4A₁ 8A₁ 16A₁ A₁ U₁ U₂ U₃ U₄ R₅ U₅ U₆ U₇ U₈ U₉
Bar with linearly varying area
(a) First-level substructure


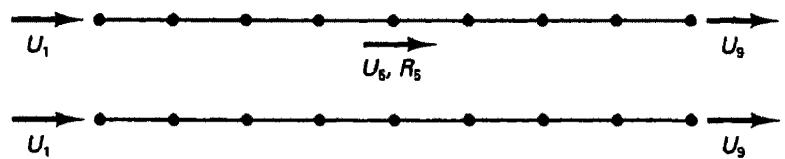

(b) Second-level substructure
(c) Third-level substructure and actual structure
Figure E8.10 Analysis of bar using substructuring
to evaluate the equilibrium relations corresponding to U_{1} , U_{3} , and U_{5} :
\frac {1 3}{9} \frac {A _ {1} E}{L} \left[ \begin{array}{r r r} 1 & - 1 & 0 \\ - 1 & 3 & - 2 \\ 0 & - 2 & 2 \end{array} \right] \left[ \begin{array}{l} U _ {1} \\ U _ {3} \\ U _ {5} \end{array} \right] = \left[ \begin{array}{c} R _ {1} + \frac {5}{1 2} R _ {2} \\ R _ {3} + \frac {7}{1 2} R _ {2} + \frac {5}{1 2} R _ {4} \\ R _ {5} + \frac {7}{1 2} R _ {4} \end{array} \right] \tag {c}
The relation for calculating U_{4} is similar to the one in (b):
U _ {4} = \frac {1}{2 4} \left(\frac {3 L}{2 E A _ {1}} R _ {4} + 1 0 U _ {3} + 1 4 U _ {5}\right)
Using Gauss elimination on the equations in (c) to condense out U_{3} , we obtain
\frac {1 3}{9} \frac {A _ {1} E}{L} \left[ \begin{array}{c c c} \frac {2}{3} & 0 & - \frac {2}{3} \\ - 1 & 3 & - 2 \\ - \frac {2}{3} & 0 & \frac {2}{3} \end{array} \right] \left[ \begin{array}{l} U _ {1} \\ U _ {3} \\ U _ {5} \end{array} \right] = \left[ \begin{array}{c} R _ {1} + \frac {2 2}{3 6} R _ {2} + \frac {1}{3} R _ {3} + \frac {5}{3 6} R _ {4} \\ R _ {3} + \frac {7}{1 2} R _ {2} + \frac {5}{1 2} R _ {4} \\ \frac {1 4}{3 6} R _ {2} + \frac {2}{3} R _ {3} + \frac {3 1}{3 6} R _ {4} + R _ {5} \end{array} \right]
